100mm Equilibrium Float Valve C/W Drop arm and Float

£2,932.32 £2,443.60

Check Delivery is available in your area:

Delivery Cost: £65.00
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

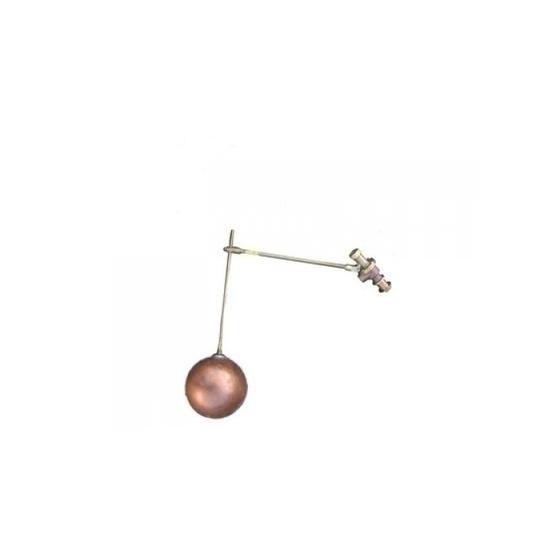

100mm (4") Equilibrium Float Valve C/W Drop arm and Copper Float


To control the flow of water into cold water cisterns and GRP water storage tanks is the use of float valves. A copper float on the water inside a tank is attached to an arm which operates a valve which controls the inflow of water - as the water level in the tank drops, the arm falls and opens the valve to allow water to enter the water storage tank; then as the water flows in, the water level rises, as does the ball thus moving the arm which then closes the valve shutting off the water flow.


Male BSP threaded equilibrium float valves complete with drop arm and high quality copper float are reliable, simple and robust and can self-compensate for changes in water supply pressures, the hydraulically balanced closing action gives fast, quiet and smooth shut-off. Standard valve with the addition of a brass threaded drop arm to allow the valve to be fitted into a raised float valve housing c/w spill over weir slot to provide an AB or AA air gap to suit systems where catagory 5 water is present. Valves are available in 1/2” to 4” sizes with BSP male threaded inlet stub.


One size of seat and one size of ball float will suit any working pressure up to the maximum recommendation of 5 bar whilst still maintaining a fast, quiet and smooth shut off action.  Design and selection of materials gives high strength for installation and operation, and corrosion resistance for long life. The body of the valve is made from corrosion immune Gunmetal giving years of trouble free service.



  • Body: Gunmetal
  • Lever arm: DZR Brass
  • Lever arm claw: Gunmetal
  • Ball Float: Copper
  • Back nut: Plastic, Brass or Gunmetal
More Information
Product Type Float Valve
Custom Shipping 65.000000
Manufacturer Complete Pump Supplies
Model Range Equilibrium Float Valve c/w Drop Arm & Float
Warranty 1 Year Warranty
Product Code FVEQ.DA.10
