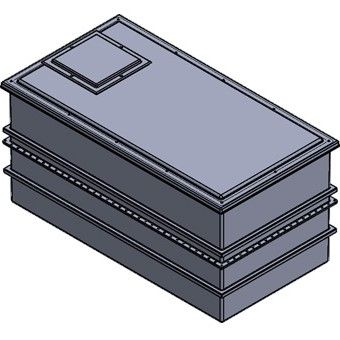

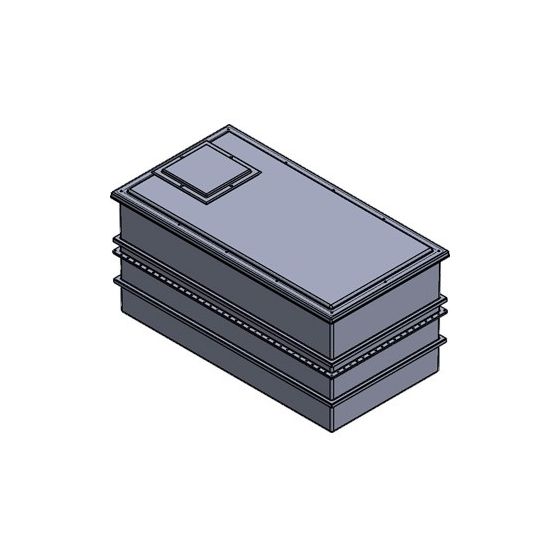

3636 Litre GRP Two Piece Water Tank (Insulated)
Complete Pump Supplies can provide a wide range of Two Piece GRP water tanks. These innovative cold water storage tanks are manufactured from state of the art GRP materials. Low maintenance, long lasting and highly cost effective - these tanks are a fantastic option for a wide range of cold water storage applications.
Particularly suitable for sites with access restrictions, allowing a large tank to be carried through a doorway or similar restriction then assembled once in position. Comprising an upper and lower section of equal height incorparating an external horizontal joint flange allowing the sections to be bolted together on site. All sealant and fixings for the joint flange and an assembly instructions sheet are supplied with the tank. Images of tank are for example only.
- Provides a cost saving in comparaion to a sectional tank.
Specifications

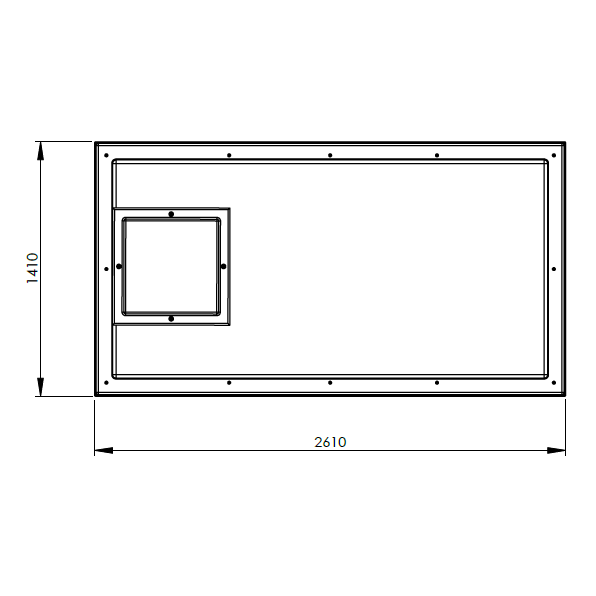

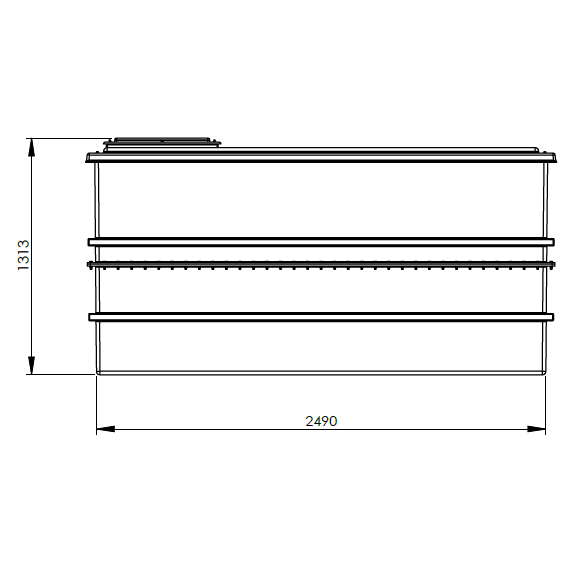

Capacity: 3636 Litres
Length Internal: 2440mm
Length External: 2610mm
Width Internal: 1220mm
Width External: 1410mm
Height Internal: 1220mm
Height External: 1313mm
Lid: With Vent
Manway: Included
Steel Bracing: Encapsulated
Please note: by adding an encapsulated baseboard this adds 30mm to the external height of the tank.
Approvals & Certification
Full WRAS approval. Cert No 0809038.
BS EN 13280.2001
ISO 9001:2000 Quality System.
Applications
Suitable for all cold water applications including:-
- Potable and Non Potable water storage.
- Process water (including process cooling) applications -150C to +300C.
- Provides mains water protection from fluid category 1, 2, 3, & 4 with standard lid arrangement & fluid category 5 when raised float valve housing with AB air gap is fitted.
Features
- Fully encapsulated insulation to sides and lid.
- A close fittting and sealed lid which removed for maintenance.
- CFC free PU foam insulation, which is completely enscapsulated within the GRP laminate.
- Structural support where required is provided by rolled hollow section steel with fully welded corner jointing, which is also completely encapsulated within the GRP Laminate.
- Tanks storing over 1000 litres nominal have an access manway with removal lid providing a 520 x 520 mm opening. Allowing access for maintenance and inspection.
White colour as standard (other RAL or BS colours are available at additional cost). Delivery generally 2 weeks (made to order non-returnable). Tank is supplied with standard pad positions (at opposite ends of the tank) in the insulation for connection holes to be cut by site. Please note the options of valves, connectors, etc are supplied loose if selected.
KIWA Approval | No |
---|---|
Product Type | Water Storage Tank |
Custom Shipping | 275.000000 |
Manufacturer | Complete Pump Supplies |
Model Range | Two Piece Tank |
Warranty | 1 Year Warranty |
Dimensions | 2610 x 1410 x 1313mm (LxWxH) |
Product Code | PW3636-2 |
Material | GRP |
Tank Insulation | 25mm insulation |
