Calpeda 1MXV-B40-906/AO-EMT-8 Easymat Booster Set - Single Pump

Name: Calpeda 1MXV-B40-906/AO-EMT-8 Easymat Booster Set - Single Pump
Brand: Calpeda
SKU: U94004911900
Price: 2513.28 GBP
Availability: InStock

SKU

U94004911900

Special Price £2,513.28 £2,094.40 Regular Price £3,590.40 £2,992.00

Check Delivery is available in your area:

Postcode

For more than 50 years, Calpeda Pumps UK have been manufacturing and retailing high quality booster sets, pumps and water pressurisation units. As an active member of the British Pump Manufacturers Association (BPMA), Calpeda are always at the forefront of the latest industry technologies and abreast of the newest changes to legislation. Calpeda booster pump sets produce pumps for both domestic and commercial purposes across a number of different industries. Every single booster pump and single pump booster set produced by Calpeda undergoes a rigorous production testing process to ensure that it meets the high standards set by the company. These high standards are a central theme in the tradition of the company, having built up a reputation as a manufacturer of pumps and water pressurisation units which of both durable and effective. Never ones to rest on their laurels, Calpeda’s engineers continue to produce innovative designs and manufacturing solutions by identifying new applications and materials which can be utilised for improved performance. The company works in tandem with leading Italian universities and international research centres in Calpeda’s advanced turbo machinery research and development centre to identify new technological advances which could improve their innovations or manufacturing processes. We also stock Calpeda MXH models, Calpeda BTM 61E, NMP, & Calpeda multistage pumps, shop today.

Free Standard Delivery On Most Products Over £100 ex VAT

SERVICE & MAINTENANCE

Need help with your order?

Call us today 0333 323 2329

Product Description

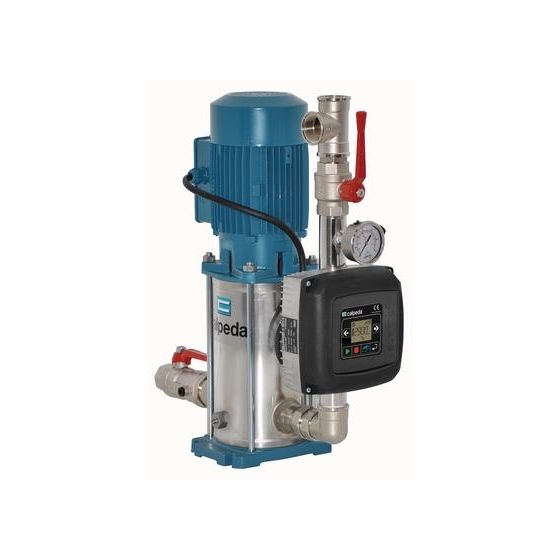

Calpeda 1MXVBO The domestic and small commercial use Easymat Variable Speed Booster Set is a range of one pump variable speed booster sets which are economically priced. This particular Booster Set features the MXV-BO which is stainless steel from the multi-stage vertical booster pump. The pump is also fitted with brass valves. Included is a 8 litre expansion vessel and pressure gauge. This Booster Set is controlled by an Easymat EMT.

Easymat Controller

This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).

MXVBO

The Booster Sets are controlled via a transducer and features a practical and easy to use LCD display and includes a wide range of display operating functions and signals.

Booster Pump

This Booster Set comprises of a single MXV-BO stainless steel, multi-stage vertical booster pump with 1 1/2" screwed inlet and outlet connections.

Booster Set Motor Specifications

Aluminium 2-Pole (2900rpm) induction motors, three phase 230V - 50hz with class F insulation, IP54 enclosure, IEC34

Specification

More Information
Product Type	Booster Set
Booster Type	Single Pump
Custom Shipping	0.000000
Manufacturer	Calpeda
Model Range	Easymat 1MXV-BO
Dimensions	1245 x 530mm (HxD)
Power Supply	220V-240V Single Phase
Kw Rating	2.2 kW
Max Flow	13m3/hr
Max Head	65m
Product Code	U94004911900
Material	Stainless Steel
Outlet Connection	1 1/2" Threaded
Inlet Connection	1 1/2" Threaded
Variable Speed	Yes
Pump Quantity	1 Pump
