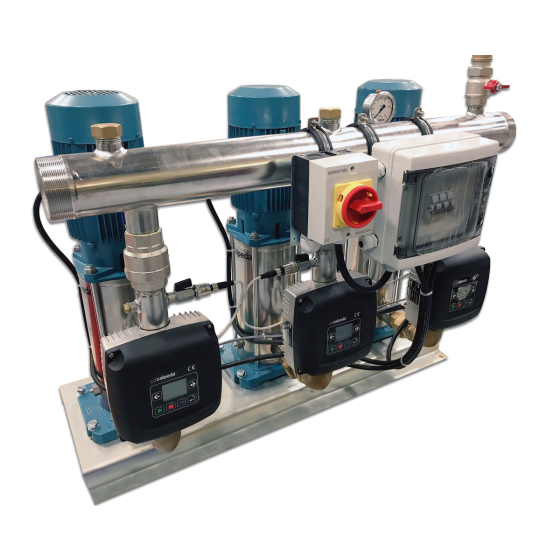

Calpeda Easymat 3MXV-B40-903O-EMT-24 Three Pump Booster Set

The Calpeda Easymat 3MXV-BO range is a variable speed three pump booster set suitable for domestic and small commercial use.

This particular Booster Set features three MXV-BO stainless steel vertical multistage pumps. The pump is fitted with stainless steel manifolds, brass valves, an 24 litre expansion vessel and pressure gauge and has 3" screwed inlet and 3" screwed outlet connections.

Easymat Controller

The Calpeda Easymat 3MXV-BO is controlled by three Easymat EMT variable speed controls and is one of the first in a new generation on variable speed controllers. It is driven by frequency converter, for the pressure control in domestic and residential plants. Featuring a practical and easy to use LCD display and includes a wide range of display operating functions and signals.

The system is connected to the delivery pipe providing for simple installation and better cooling (patented) making the unit more compact and easy to assemble.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply.

Applications

This Booster Set is suitable for Clean liquids without abrasives. Universal pump for domestic, civil and garden and irrigation water supply.

Booster Set Motor Specifications

• 2-pole induction motors, 50Hz, n=2900 rpm, suitable for operation with frequency converter
• Class F insulation
• IP 54 protection
• Execution according IEC 60034

Application

Suitable for Duty/Stand-by/Stand-by, Duty/Assist/Stand-by or Duty/Assist/Assist Operation.
