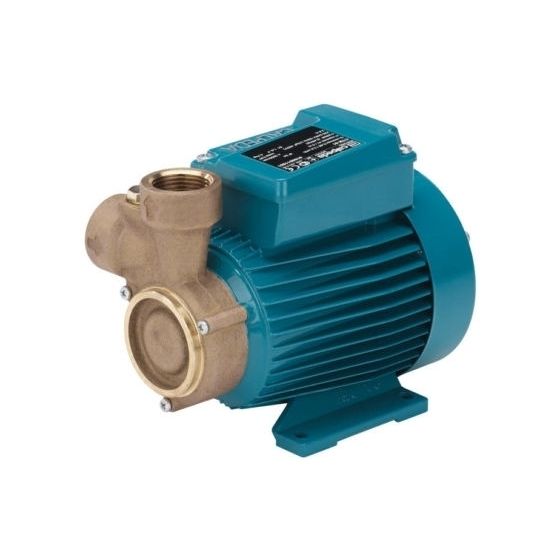

Calpeda BTM 61E Bronze Peripheral Pump (1 Phase)

Calpeda B-TM 61E Bronze Peripheral Pump (1 Phase)

• Calpeda CT close-coupled peripheral pumps (regenerative) with turbine impellers have compact construction with single-piece motor casing and pump-side wall.
• B-CT: version with pump casing and lantern bracket in bronze.
• Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.
•  These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.

B-TM 61E Bronze Peripheral Booster Pump

• Bronze close coupled regenerative peripheral pumps with turbine impeller.
• For clean liquids without abrasives or suspended solids.
• Non explosive, non aggressive for the pump materials.
• For increasing network pressure.
• Due to the reduced dimensions, these pumps are well suited for mounting in cooling and air conditioning units. Also can be used for circulation and boiler feed.

Specifications

• Total suction lift up to 7 metres
• 2 pole induction motor 50 Hz , 2900 rpm
• Insulation : Class F. Protection : IP54
• Protection IP55
• Special mechanical seal
• Higher or lower liquid temperatures

Operating conditions:
