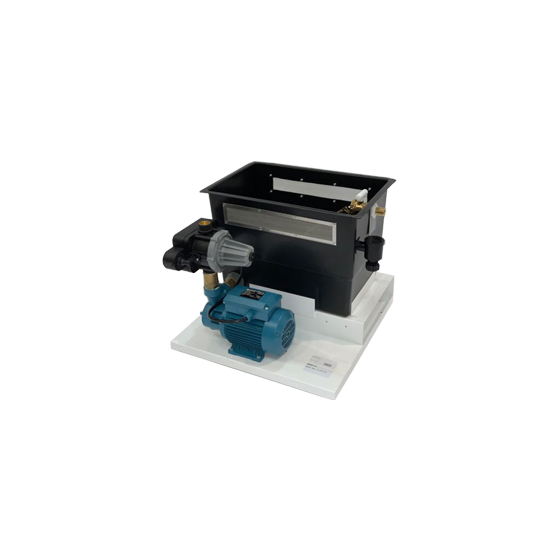

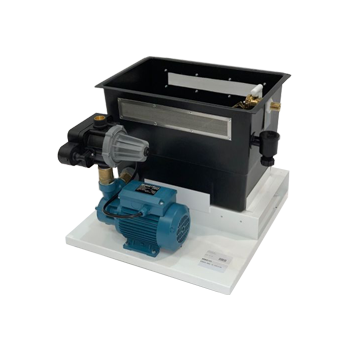

Calpeda MXHM 203E AGAP 80 Cat 5 Single Pump Booster Set

SKU
U30000700000
Special Price £1,537.20 £1,281.00 Regular Price £2,196.00 £1,830.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

Calpeda Cat 5 MXHM 203E AGAP 80 Booster Set



Calpeda AGAP pump sets comprises a WRAS approved stainless steel pump with a Idromat control system on a mild steel base with a 80 litre cold water storage tank. This Booster Set is designed to maintain a pressurised cold water supply to the equipment and to prevent back flow of possible contaminated water into the mains system.



The Idromat controller is equipped with a flow and pressure sensor, built in check valve and 0 - 12 bar pressure gauge. Designed for automatic control of the pump and has dry running protection.



The Calpeda AGAP pump system with cistern is designed to meet the requirements of the water supply (water fittings) regulations 1999 in respect of a type AB air gap at the point of use or discharge of "quality non-domestic water”. A servicing valve with a relevant BSI kite mark, CE mark or WRAS approval must be fitted in the cistern water supply pipe prior to the float operated valve.



Model

Ball/Float

Cistern

Supply

MXHM203E AGAP 80

3/4"

80

230/1/50



More Information
Product Type Booster Set
Booster Type Cat 5
Custom Shipping 0.000000
Manufacturer Calpeda
Warranty 1 Year Warranty
Dimensions 660 x 605 x 740mm (WxDxH)
Power Supply 220V-240V Single Phase
Kw Rating 0.65 kW
Volume / Capacity 80 Litre
Max Flow 80l/min
Max Head 33m
Product Code U30000700000
Tank Insulation Not insulated
Inlet Connection 3/4" Threaded
Positioning Floor standing
System Type Category 5
Variable Speed Yes
Pump Quantity 1 Pump
