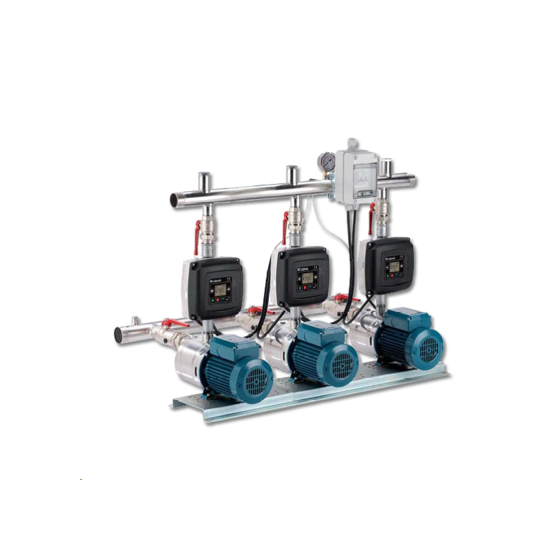

Calpeda Easymat 3MXH406-EMT-24 Three Pump Booster Set
The Calpeda 3 MXH is a range of commercial variable speed three pump booster sets featuring MXH all stainless steel pumps. Suitable for Duty/Stand-by/Stand-by, Duty/Assist/Stand-by or Duty/Assist/Assist Operation.
Easymat Controller
This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.
The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).
- 3 MXH
The Booster Sets are controlled via a transducer and features a practical and easy to use LCD display and includes a wide range of display operating functions and signals.
Pumps
MXH horizontal, multi-stage, all stainless steel pumps.
Motors
- 2-pole induction motors
- Three phase 230/400V
- Single phase 230V
- Class F insulation
- IP54 enclosure
- IEC 34
System
One piece stainless steel manifolds, Brass valves and fittings, Mild steel base plate, 24 litre stainless steel vessels with butyl membrane (optional steel free standing vessel with stainless flange and butyl membrane). Fully wired with steel amour cable and fully tested
Product Type | Booster Set |
---|---|
Booster Type | Three Pump |
Custom Shipping | 0.000000 |
Manufacturer | Calpeda |
Model Range | Easymat 3MXH |
Product Code | U83004200000 |
