Calpeda Easymat 3MXV-B25-308O-EMT-24 Three Pump Booster Set

SKU
U94009500000
Special Price £7,858.20 £6,548.50 Regular Price £11,226.00 £9,355.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

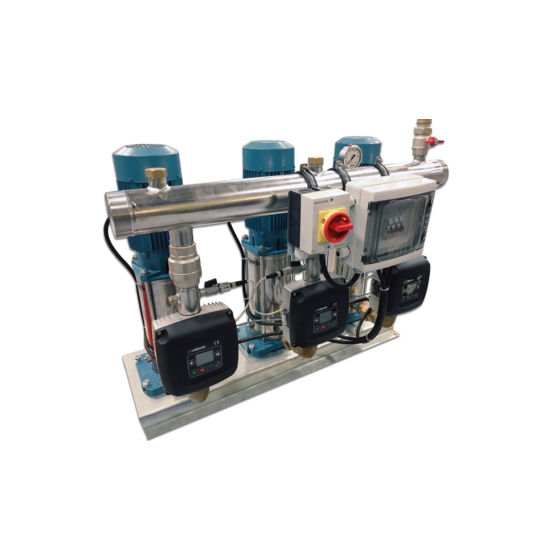

.The Calpeda 3 MXV-BO is a range of commercial variable speed three pump booster sets featuring MXV-BO all stainless steel pumps. Suitable for Duty/Stand-by/Stand-by, Duty/Assist/Stand-by or Duty/Assist/Assist Operation.



Easymat Controller

This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).

  • 3-MXVBO

The units are controlled via a transducer and features a practical and easy to use LCD display featuring a wide range of display and operating functions and signals.



Pumps

MXV-BO vertical, multi-stage, all stainless steel pumps.



Motors

  • 2-pole induction motors
  • Three phase
  • 230/400/3/50
  • Class F insulation
  • IP54 enclosure
  • IEC 34



System

One piece stainless steel manifolds, Brass valves and fittings, Mild steel base plate, 24 litre stainless steel vessels with butyl membrane (optional steel free standing vessel with stainless flange and butyl membrane). Fully wired with steel amour cable and fully tested.

More Information
Product Type Booster Set
Booster Type Three Pump
Custom Shipping 0.000000
Manufacturer Calpeda
Warranty 1 Year Warranty
Dimensions 1000 x 1320 x 520mm (WxDxH)
Power Supply 220V-240V Single Phase
Kw Rating 3 x 1.5 kW
Max Flow 13.5m3/hr
Max Head 90m
Product Code U94009500000
Material Stainless Steel
Outlet Connection 2'' Threaded
Inlet Connection 2'' Threaded
Variable Speed Yes
Pump Quantity 3 Pump
