Calpeda Easymat 3MXV-B32-404-EMT-24 Booster Set - Three Pump

Product Code: U26012900000
Calpeda Easymat 3MXV-B32-404-EMT-24 Booster Set - Three Pump
Delivery Estimate
1 - 2 working weeks
1 Year Warranty

Regular Price: £10,108.80

Special Price £5,896.80 ex. VAT £7,076.16 inc. VAT

OR

Want to speak to us?

Open 8.30am - 5pm Mon to Fri

Order by phone and get advice.

Freephone 0333 323 2329

Description

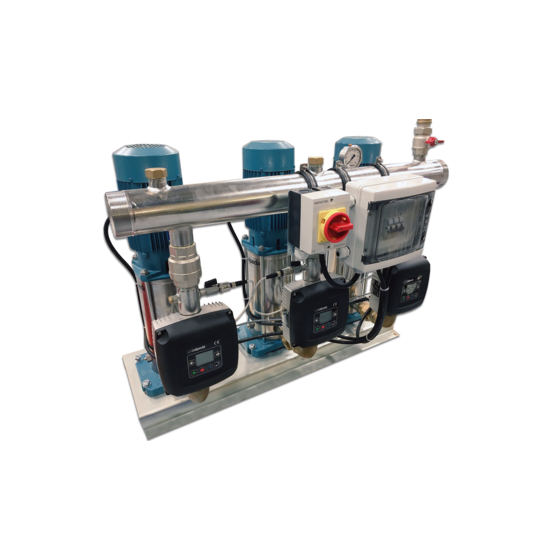

Calpeda Easymat 3MXV-B32-404-EMT-24 Booster Set - Three Pump

Calpeda Easymat 3MXV-B32-404-EMT-24 Booster Set - Three Pump

The Calpeda 3 MXV-B is a range of commercial variable speed three pump booster sets featuring MXV-B all stainless steel pumps. Suitable for Duty/Stand-by/Stand-by, Duty/Assist/Stand-by or Duty/Assist/Assist Operation.

Easymat Controller

This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).

  • 3-MXVB

The units are controlled via a transducer and features a practical and easy to use LCD display featuring a wide range of display and operating functions and signals.

Pumps

MXV-B vertical, multi-stage, all stainless steel pumps.

Motors

  • 2-pole induction motors
  • Three phase 230/400V
  • Single phase 230V
  • Class F insulation
  • IP54 enclosure
  • IEC 34

System

One piece stainless steel manifolds, Brass valves and fittings, Mild steel base plate, 24 litre stainless steel vessels with butyl membrane (optional steel free standing vessel with stainless flange and butyl membrane). Fully wired with steel amour cable and fully tested

Pump Model Calpeda Easymat 3MXV-B32-404-EMT-24 Variable Speed Single Pump Booster Set 240V
Voltage 240V 1Ph 50Hz
Dimensions 743mm High x 544mm Deep x 600mm Wide
Weight 104.0000
Max. Flow 24m3/hr
Max. Head 45m
Motor Size (kW/W) 3 x 1.1kW
Single/Twin/Three Three Pump
Specification
SKU U26012900000
Warranty 1 Year Warranty
Weight (kg) 0.0000
