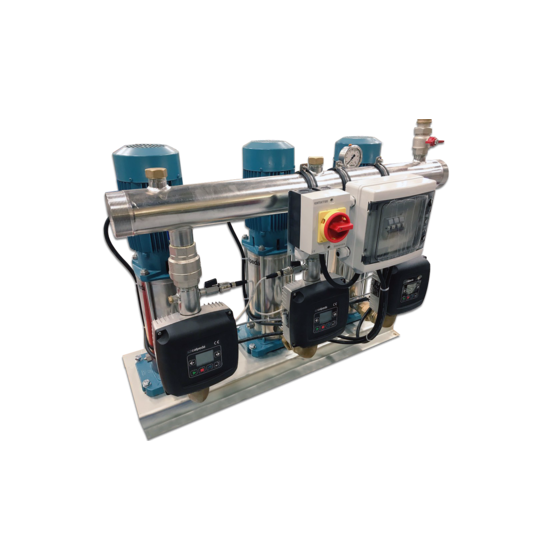

Calpeda Easymat 3MXV-B32-408/A-EMT-24 Booster Set - Three Pump
The Calpeda 3 MXV-B is a range of commercial variable speed three pump booster sets featuring MXV-B all stainless steel pumps. Suitable for Duty/Stand-by/Stand-by, Duty/Assist/Stand-by or Duty/Assist/Assist Operation.
This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.
The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).
The units are controlled via a transducer and features a practical and easy to use LCD display featuring a wide range of display and operating functions and signals.
MXV-B vertical, multi-stage, all stainless steel pumps.
2-pole induction motors
Three phase 230/400V
Single phase 230V
Class F insulation
One piece stainless steel manifolds, Brass valves and fittings, Mild steel base plate, 24 litre stainless steel vessels with butyl membrane (optional steel free standing vessel with stainless flange and butyl membrane). Fully wired with steel amour cable and fully tested
Calpeda Easymat 3MXV-B32-408/A-EMT-24 Variable Speed Single Pump Booster Set 240V
240V 1Ph 50Hz
743mm High x 544mm Deep x 600mm Wide
Motor Size (kW/W)
3 x 2.2kW
Next Day Available
1 Year Warranty
