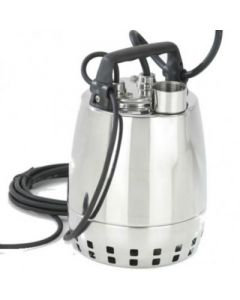

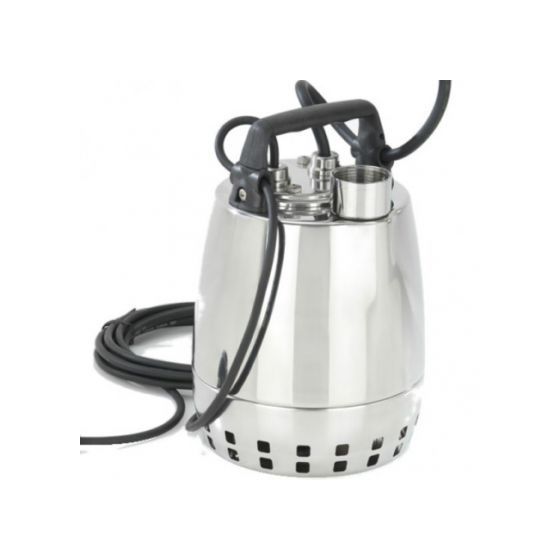

Calpeda GXR 9 SG Submersible Manual Pump with 10m Cable (400V)

Calpeda GXR 9 SG Submersible Manual Pump with 10m Cable (400V)

Applications

• For clean water containing solids up to 10 mm grain size.
• For draining rooms or or emptying tanks.
• Extraction of water from ponds, streams or pits and for rainwater collection.
• For irrigation purposes.
• For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

*this model has no float switch

Construction

• Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
• Motor cooled by the pumped water passing between the motor jacket and the external jacket.
• Double shaft seal with oil chamber.
• Minimum dimension and high levels of performance, for use in many different applications, head up to 9m and flow rates up to 170 litres/min.

Operating conditions

• Liquid temperature up to 50° C.
• Maximum immersion depth: 5 m.
• Minimum water level with float: GXR = 70 mm, GXV = 130 mm.
• Minimum water level manual operation: GXR = 15 mm, GXV = 30 mm.
• Continuous duty.

Motor

• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
• GXR, three-phase 400 V ± 10%;
• Incorporated capacitor.
• Insulation class F.
• Protection IP X8 (for continuous immersion) Double impregnation humidity-proof dry winding.
• Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.
