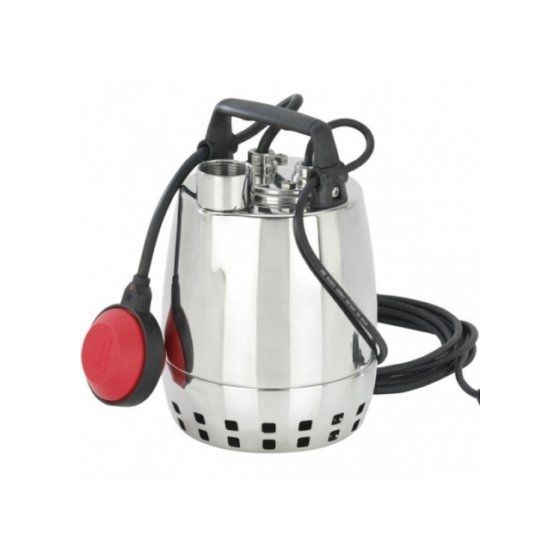

Calpeda GXRM 11 Automatic Submersible Pump, Float Switch, Plug and 10m Cable (230V)
Calpeda GXRM 11 Automatic Submersible Pump, Float Switch, Plug and 10m Cable (230V)

Calpeda GXRM 11 Automatic Submersible Pump, Float Switch, Plug and 10m Cable (230V)

SKU
72U70100002
Special Price £296.52 £247.10 Regular Price £423.60

Check Delivery is available in your area:



SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

Calpeda GXRM 11 Automatic Submersible Pump, Float Switch, Plug and 10m Cable (230V)

Applications

  • For clean water containing solids up to 10 mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.
  • For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.



Construction
Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
Minimum dimension and high levels of performance, for use in many different applications, head up to 11m and flow rates up to 200 Litres/min.



Operating conditions
Liquid temperature up to 50° C.
Maximum immersion depth: 5 m.
Minimum water level with float: GXR = 70 mm
Minimum water level manual operation: GXR = 15 mm
Continuous duty.



Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
GXRM, GXVM: single-phase 230 V, with float switch and thermal protector. Incorporated capacitor.
Insulation class F.
Protection IP X8 (for continuous immersion) Double impregnation humidity-proof dry winding.
Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.

More Information
Product Type Submersible Drainage/Sump Pumps
Brand Calpeda
GTIN 8030485489948
Warranty 1 Year Warranty
Power Supply 230V Single Phase
Kw Rating 0.7 kW
Max Flow 200l/min
Max Head 11m
Outlet Connection 1 1/4" Threaded
