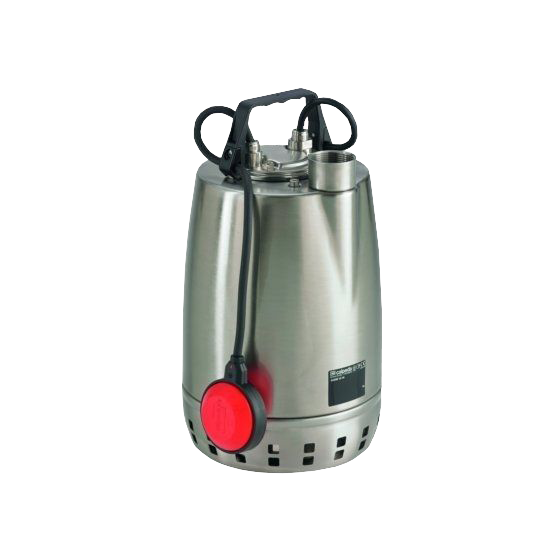

Calpeda GXRM 12-16 Stainless Steel Submersible Drainage Pump (230V)

Special Price £847.56 £706.30 Regular Price £1,210.80 £1,009.00

Check Delivery is available in your area:

Free Standard Delivery On Most Products Over £100 ex VAT
1 Year Warranty
3 - 5 working days

Need help with your order?

Phone icon

Call us today 0333 323 2329

Calpeda GXRM 12-16 Stainless Steel Submersible Drainage Pump with 10m cable, incorporated capacitor, float switch and thermal protection


GXR Open single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port. Motor cooled by the pumped water passing between the motor jacket and the external jacket. Double shaft seal with oil chamber.


  • For clean water containing solids up to 12 mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.
  • For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60335-2-41.

Operating conditions

  • Liquid temperature up to 40° C.
  • Maximum immersion depth: 5 m.
  • Minimum water level with float: 70 mm,.
  • Minimum water level manual operation: 15 mm.
  • Continuous duty.


  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • GXRM: single-phase 230 V,
    with float switch and thermal protector.
    Incorporated capacitor.
    Cable: H07RN-F, 3G1 mm2 (3G1,5 mm2 for 1,1 kW,
    3G2,5 mm2 for 1,5 kW), length 10 m, with plug CEIUNEL
  • Protection IP X8 (for continuous immersion)
  • Double impregnation humidity-proof dry winding.
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-4
More Information
Delivery Estimate 3 - 5 working days
Product Type Submersible Drainage/Sump Pumps
Custom Shipping 0.000000
Manufacturer Calpeda
Model Range GXRM Range
Warranty 1 Year Warranty
Power Supply 220V-240V Single Phase
Product Code 72U70350000
