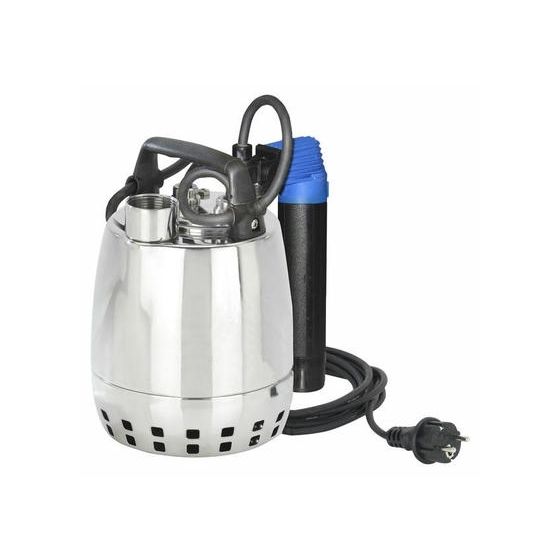

Calpeda GXRM 13-GF Automatic Submersible Pump, Magnetic Float Switch, 10m Cable and QM Control Box (110V)

Calpeda GXRM 13-GF Automatic Submersible Pump, Magnetic Float Switch, 10m Cable and QM Control Box (110V)

Applications

• For clean water containing solids up to 10 mm grain size.
• For draining rooms or or emptying tanks.
• Extraction of water from ponds, streams or pits and for rainwater collection.
• For irrigation purposes.
• For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Construction
Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
Minimum dimension and high levels of performance, for use in many different applications, head up to 12,7 m and flow rates up to 220 Litres/min.

Operating conditions
Liquid temperature up to 50° C.
Maximum immersion depth: 5 m.
Minimum water level with float: GXR = 70 mm
Minimum water level manual operation: GXR = 15 mm
Continuous duty.

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
GXRM, GXVM: single-phase 230 V, with float switch and thermal protector. Incorporated capacitor. *this model is 110v
Insulation class F.
Protection IP X8 (for continuous immersion) Double impregnation humidity-proof dry winding.
Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.
