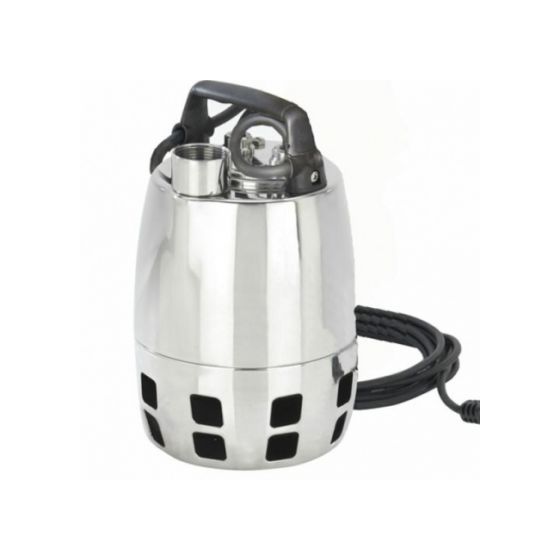

Calpeda GXVm-25-10-SG Manual Submersible Pump, 10m Cable and QM Control Box (110V)

SKU
72U10400011
Special Price £645.96 £538.30 Regular Price £922.80 £769.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

Calpeda GXVm-25-10-SG Manual Submersible Pump, 10m Cable and QM Control Box (110V)

Construction
Single free flow (vortex) impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.

Applications

GXV:

  • For clean or slightly dirty water, containing solids up to 25 mm grain size.
  • Particularly suitable for liquids with a high solid content.
  • For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Operating conditions
Liquid temperature up to 50° C.
Maximum immersion depth: 5 m.
Minimum water level with float: GXR = 70 mm, GXV = 130 mm.
Minimum water level manual operation: GXR = 15 mm, GXV = 30 mm.
Continuous duty.

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
GXVM: single-phase 110V with float switch and thermal protector.
Incorporated capacitor.

More Information
Product Type Submersible Drainage/Sump Pumps
Custom Shipping 0.000000
Manufacturer Calpeda
Warranty 1 Year Warranty
Power Supply 220V-240V Single Phase
Product Code 72U10400011
