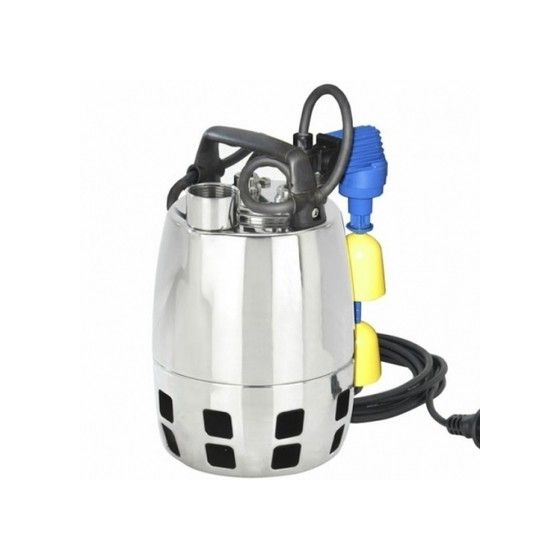

Calpeda GXVM-25-6-GFA Automatic Submersible Pump, Magnetic Float Switch, 10m Cable and QM Control Box (110V)
Construction
- Single free flow (vortex) impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
- Motor cooled by the pumped water passing between the motor jacket and the external jacket.
- Double shaft seal with oil chamber.
Applications
GXV:
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquids with a high solid content.
- For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.
Operating conditions
- Liquid temperature up to 50° C.
- Maximum immersion depth: 5 m.
- Minimum water level with float: GXR = 70 mm, GXV = 130 mm.
- Minimum water level manual operation: GXR = 15 mm, GXV = 30 mm.
- Continuous duty.
Motor
- 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
- GXVM: single-phase 110V with float switch and thermal protector.
- Incorporated capacitor.
Product Type | Submersible Drainage/Sump Pumps |
---|---|
Custom Shipping | 0.000000 |
Manufacturer | Calpeda |
Model Range | GXVM Range |
Warranty | 1 Year Warranty |
Power Supply | 220V-240V Single Phase |
Product Code | 72U10300013 |
