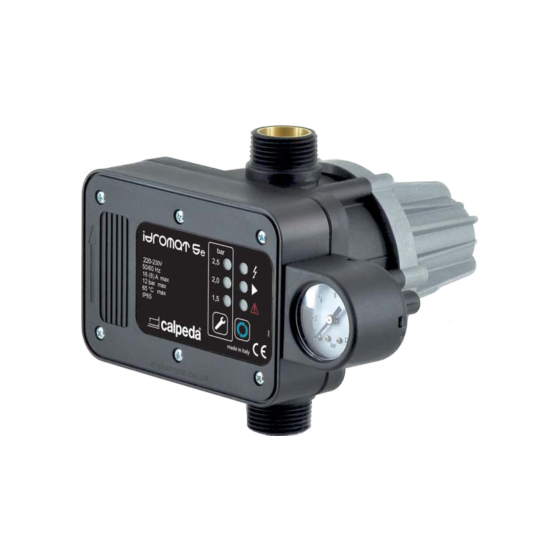

Calpeda Idromat 5-15 Electronic Pressure Regulator

SKU
17030190000
Special Price £101.64 £84.70 Regular Price £145.20 £121.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty
In stock

Need help with your order?

Phone icon

Call us today 0333 323 2329

Calpeda Idromat 5-15 Electronic Pressure Regulator for pump control, equipped with flow and pressure sensor connected to an electronic system.

Power Supply Single Phase 115V, 230V 50/60Hz
Switching On Pressure 1,5 bar
Pump Head > 23 m
Inlet  1"
Outlet 1"
Maximum Motor Current 16A
Maximum Motor Power 1,5 kW
Pressure Gauge 0-12 bar as standard for all the models.

Built-in check valve.
Automatic reset function for the reset of the system without manual operation.

Applications
Automatic starting/stopping control of pumps for water supply and increase of network pressure.

For protection of the pump:

  • against dry running;
  • against the risk of operation without water at the inlet (caused by a lack of water inflow in the inlet pipe under positive suction head, by a non-immersed suction pipe, by excessive suction lift or by air entering the suction pipe); against operation with closed connection ports.

(The CALPEDA Idromat 5-15 Electronic Pressure Regulator has replaced the 3-15 model)

More Information
Delivery Estimate In stock
Product Type Booster Set Accessories
Custom Shipping 0.000000
Manufacturer Calpeda
Warranty 1 Year Warranty
Product Code 17030190000
