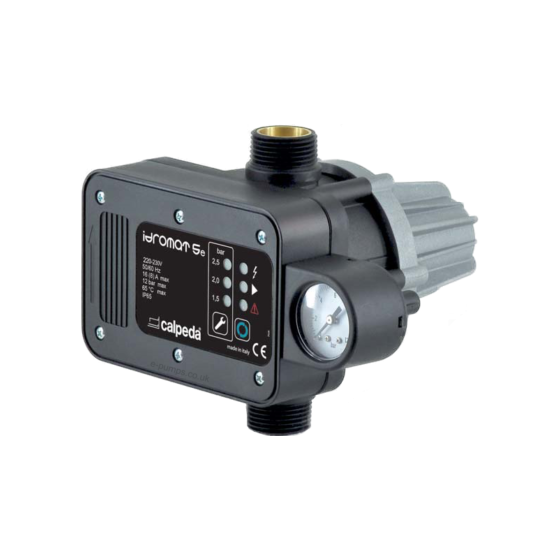

Calpeda Idromat 5-22 Electronic Pressure Regulator for pump control, equipped with flow and pressure sensor connected to an electronic system.
Power Supply
Single Phase 115V, 230V 50/60Hz
Switching On Pressure
2,2 bar
Pump Head
> 35 m
Aspiration
1"
Outlet
1"
Maximum Motor Current
16A
Maximum Motor Power
1,5 kW
Pressure Gauge
0-12 bar
Built-in check valve. Automatic reset function for the reset of the system without manual operation.
Applications Automatic starting/stopping control of pumps for water supply and increase of network pressure.
For protection of the pump:
against dry running;
against the risk of operation without water at the inlet (caused by a lack of water inflow in the inlet pipe under positive suction head, by a non-immersed suction pipe, by excessive suction lift or by air entering the suction pipe); against operation with closed connection ports.
The CALPEDA Idromat 5-22 Electronic Pressure Regulator has replaced the 3-22 model
