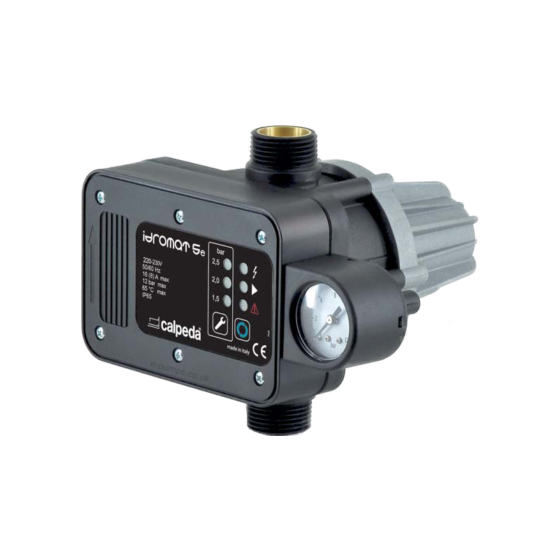

Construction Regulation device for pump control equipped with flow and pressure sensor connected to an electronic system. Inlet and delivery connection ports of the same diameter (G1). Built-in check valve. Pressure gauge 0-12 bar supplied as standard for all the models. Automatic reset function for the reset of the system without manual operation.
Applications Automatic control of pumps for water supply and increase of network pressure. Control of starting/stopping of the pump when cocks are opened/closed. For protection of the pump:
against dry running;
against the risk of operation without water at the inlet (caused by a lack of water inflow in the inlet pipe under positive suction head, by a non-immersed suction pipe, by excessive suction lift or by air entering the suction pipe); against operation with closed connection ports.
Cut in Pressure - Adjustable 1.5-2.5 bar
The CALPEDA Idromat 5e Electronic Pressure Regulator has replaced the Idromat 4 model
Next Day Available
1 Year Warranty
