Calpeda IMAT 2MXH-F3204/A-TTB-24 Twin Pump Booster Set
Calpeda IMAT 2MXH-F3204/A-TTB-24 Twin Pump Booster Set

Calpeda IMAT 2MXH-F4801/A-TTB-24 Twin Pump Booster Set

SKU
U81005000000
Special Price £11,348.40 £9,457.00 Regular Price £16,212.00

Check Delivery is available in your area:



SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

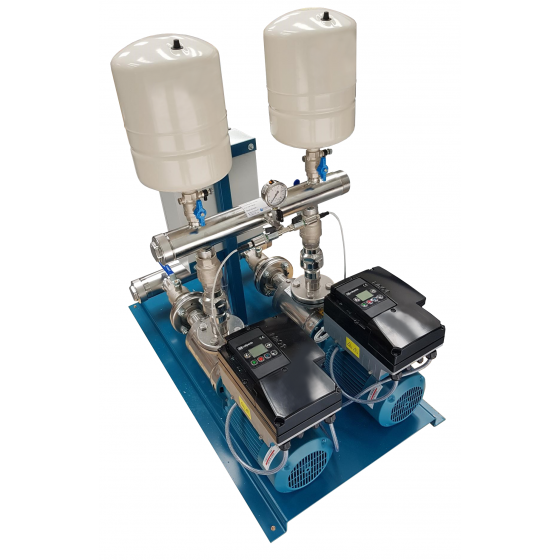

A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXH pumps.

This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has DN100 inlet and DN80 screwed outlet.

Pumps
MXH all stainless steel horizontal multi-stage centrifugal pumps (WRAs Approved).

Motors
Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.

System
One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.

Operating Conditions

  • Fluid:                     Clean Cold Water
  • Control:                 IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
  • Fluid Temp:           Max 25 Deg.C
  • Max Press:           10 bar Operational Pressure
  • Air Amb:                Max 40 Deg.C
  • Rated:                  Continuous Service

Pressure vessels (on demand)

Cylindrical with capacity 24 litres, membrane type, air precharged.

Applications
As pressure boosting pump for central water systems with low pressure.

More Information
Product Type Booster Set
Booster Type Twin Pump
Brand Calpeda
Warranty 1 Year Warranty
Dimensions 1200mm x 900mm x 1575mm (Length x Width x Height)
Power Supply 400V Three Phase
Kw Rating 2 x 3.0
Material Stainless Steel
Outlet Connection DN100 Flanged
Inlet Connection DN125 Flanged
Orientation Horizontal
Max Pressure 10 bar
