Calpeda IMAT 2MXH1606/A-TTB-24 Twin Pump Booster Set

SKU
U81004500000
Special Price £10,306.80 £8,589.00 Regular Price £14,724.00 £12,270.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

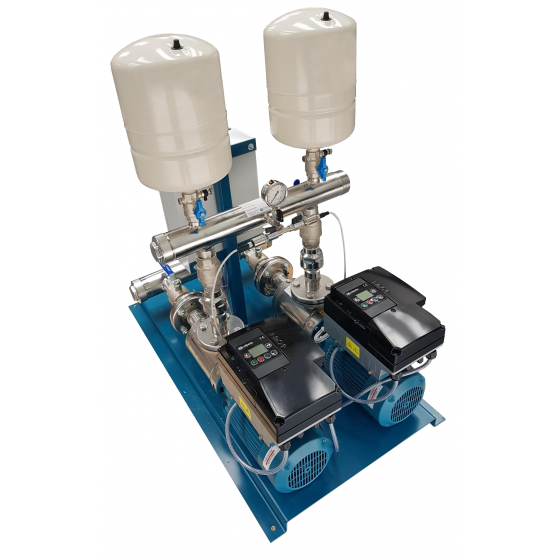

Calpeda IMAT 2MXH1606/A-TTB-24 Twin Pump Booster Set



A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXH pumps. This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has 3" screwed inlet and 21/2" screwed outlet.



Pumps

MXH all stainless steel horizontal multi-stage centrifugal pumps (WRAs Approved).



Motors

Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.



System

One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.



Operating Conditions

  • Fluid:                     Clean Cold Water
  • Control:                 IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
  • Fluid Temp:           Max 25 Deg.C
  • Max Press:           10 bar Operational Pressure
  • Air Amb:                Max 40 Deg.C
  • Rated:                  Continuous Service



Pressure vessels (on demand)

Cylindrical with capacity 24 litres, membrane type, air precharged.



Applications

As pressure boosting pump for central water systems with low pressure.

More Information
Product Type Booster Set
Booster Type Twin Pump
Custom Shipping 0.000000
Manufacturer Calpeda
Warranty 1 Year Warranty

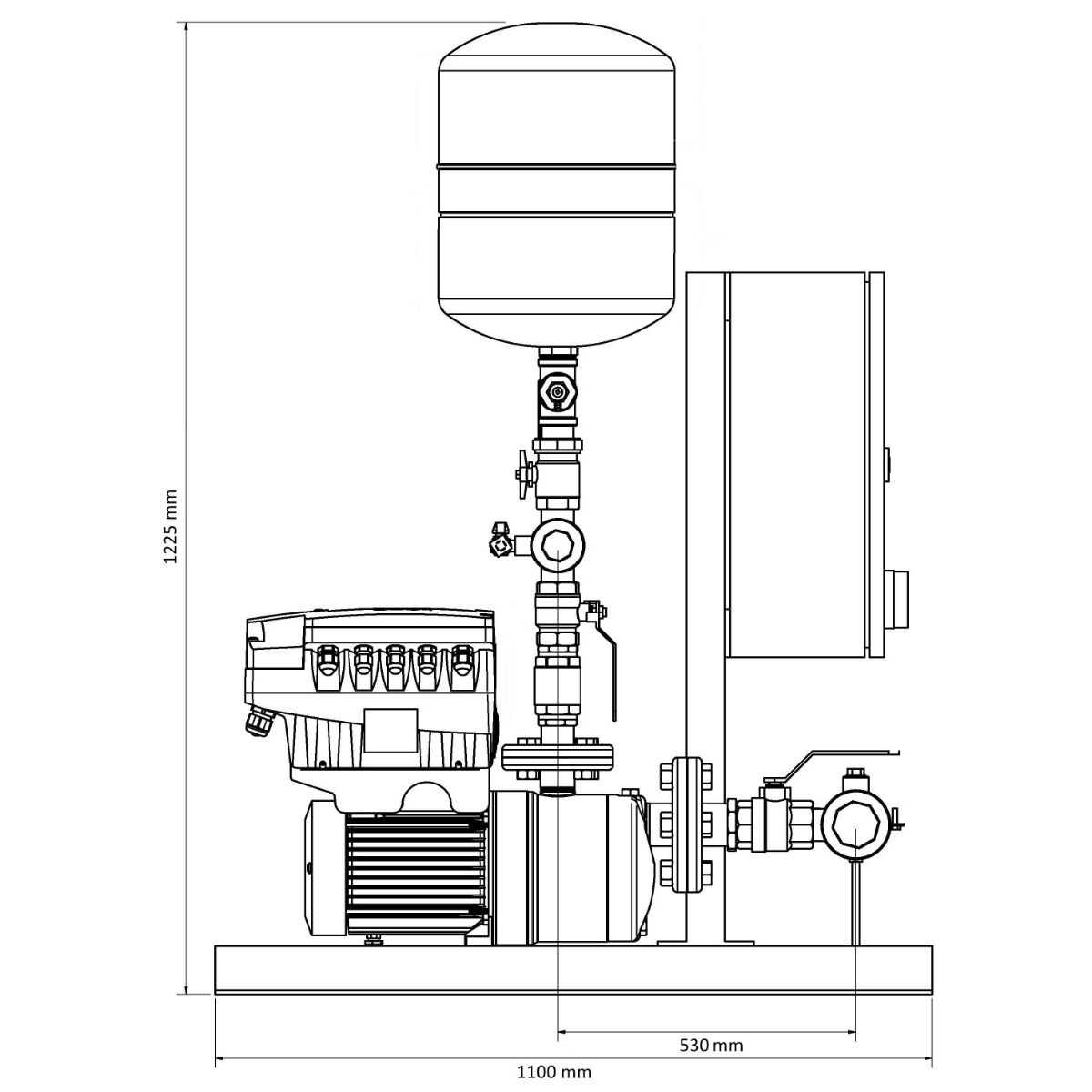

Dimensions 1100mm x 650mm x 1300mm (Length x Width x Height)
Power Supply 400V-415V Three Phase
Kw Rating 2 x 4.0
Product Code U81004500000
Material Stainless Steel
Outlet Connection 2 1/2'' Threaded
Inlet Connection 3'' Threaded
Orientation Horizontal
Variable Speed Yes
Max Pressure 10 bar
Max Temperature 25°C
