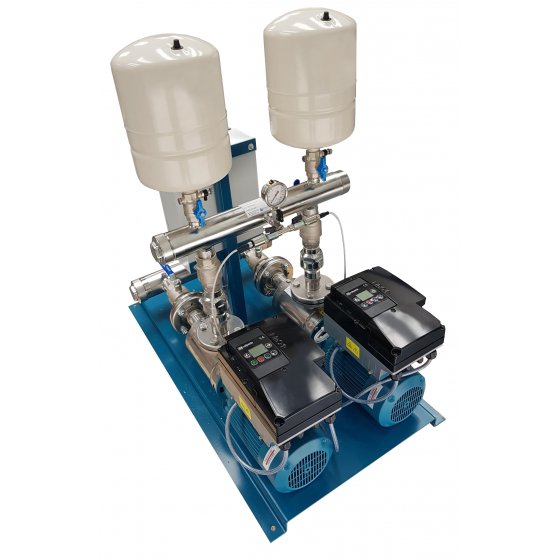

A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXH pumps.
This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has 2" screwed inlet and 11/2" screwed outlet.
MXH all stainless steel horizontal multi-stage centrifugal pumps (WRAs Approved).
Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.
One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.
- Fluid: Clean Cold Water
- Control: IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
- Fluid Temp: Max 25 Deg.C
- Max Press: 10 bar Operational Pressure
- Air Amb: Max 40 Deg.C
- Rated: Continuous Service
Pressure vessels (on demand)
Cylindrical with capacity 24 litres, membrane type, air precharged.
As pressure boosting pump for central water systems with low pressure.
|Product Type||Booster Set|
|Booster Type||Twin Pump|
|Warranty||1 Year Warranty|

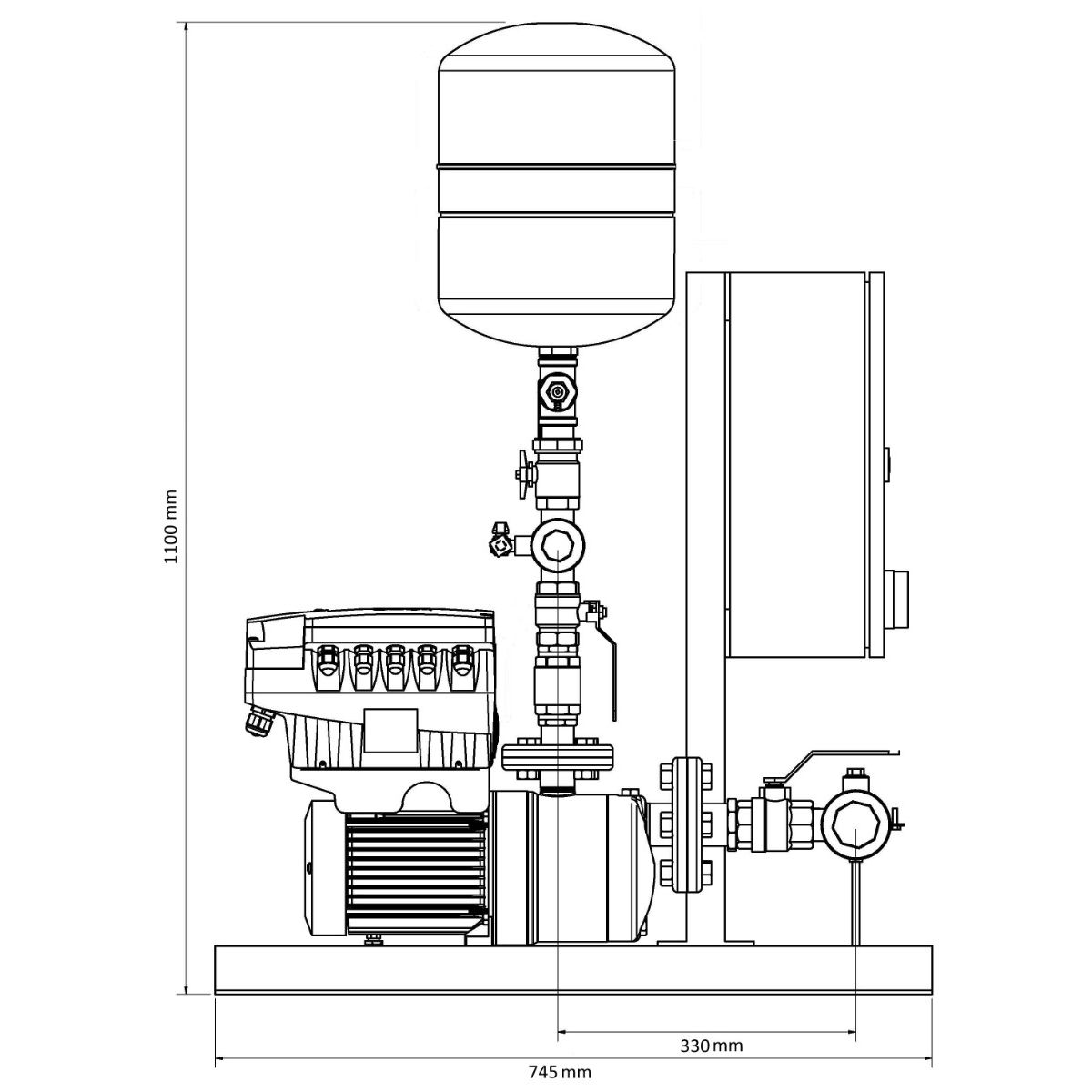

|Dimensions||745mm x 650mm x 1180mm (Length x Width x Height)|
|Power Supply||400V Three Phase|
|Kw Rating||2 x 0.75|
|Outlet Connection||1 1/2" Threaded|
|Inlet Connection||2'' Threaded|
|Max Pressure||10 bar|
