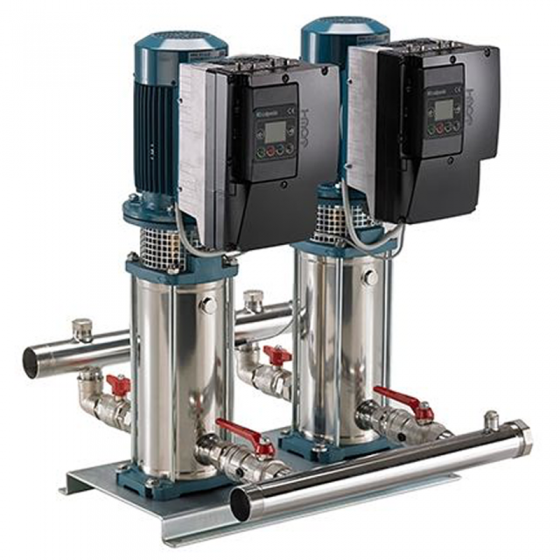

A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXV pumps.
This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has DN100 inlet and DN100 outlet.
Pumps
MXV all stainless steel vertical multi-stage centrifugal pumps.
Motors
Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.
System
One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.
Operating Conditions
- Fluid: Clean Cold Water
- Control: IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
- Fluid Temp: Max 25 Deg.C
- Max Press: 10 bar Operational Pressure
- Air Amb: Max 40 Deg.C
- Rated: Continuous Service
Pressure vessels (on demand)
Cylindrical with capacity 24 litres, membrane type, air precharged.
Applications
As pressure boosting pump for central water systems with low pressure.
Product Type | Booster Set |
---|---|
Booster Type | Twin Pump |
Custom Shipping | 0.000000 |
Manufacturer | Calpeda |
Model Range | IMAT 2MXV |
Warranty | 1 Year Warranty |
Dimensions | 1200 x 1100 x 795mm (LxWxH) |
Power Supply | 400V-415V Three Phase |
Kw Rating | 2 x 4.0 kW |
Product Code | U81013200000 |
Material | Stainless Steel |
Outlet Connection | DN100 Flanged |
Inlet Connection | DN100 Flanged |
Orientation | Vertical |
System Type | Potable (Drinking) |
Variable Speed | Yes |
Max Pressure | 10 bar |
Max Temperature | 25°C |
Pump Quantity | 2 Pump |
