Calpeda IMAT 2MXV65-3205/C-TTC-24 Twin Pump Booster Set

SKU
U81013500000
Special Price £21,061.32 £17,551.10 Regular Price £30,087.60 £25,073.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

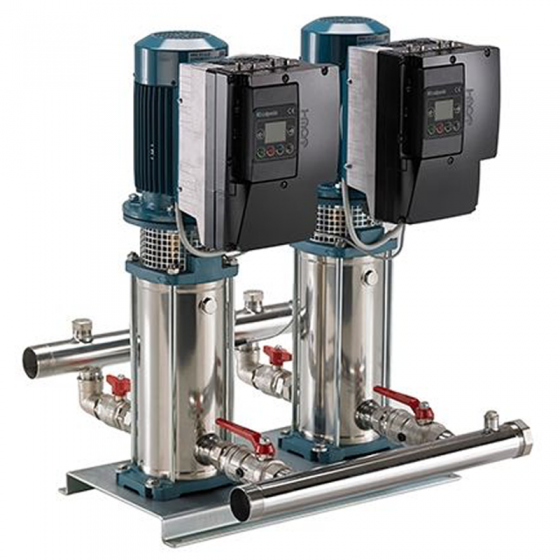

A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXV pumps.

This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has DN100 inlet and DN100 outlet.

Pumps
MXV all stainless steel vertical multi-stage centrifugal pumps.

Motors
Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.

System
One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.

Operating Conditions

  • Fluid:                     Clean Cold Water
  • Control:                 IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
  • Fluid Temp:           Max 25 Deg.C
  • Max Press:           10 bar Operational Pressure
  • Air Amb:                Max 40 Deg.C
  • Rated:                  Continuous Service

Pressure vessels (on demand)

Cylindrical with capacity 24 litres, membrane type, air precharged.

Applications
As pressure boosting pump for central water systems with low pressure.

More Information
Product Type Booster Set
Booster Type Twin Pump
Custom Shipping 0.000000
Manufacturer Calpeda
Warranty 1 Year Warranty
Dimensions 1200 x 1100 x 1100 (LxWxH)
Power Supply 400V-415V Three Phase
Kw Rating 2 x 11 kW
Product Code U81013500000
Material Stainless Steel
Outlet Connection DN100 Flanged
Inlet Connection DN100 Flanged
Orientation Vertical
System Type Potable (Drinking)
Variable Speed Yes
Max Pressure 10 bar
Max Temperature 25°C
Pump Quantity 2 Pump
