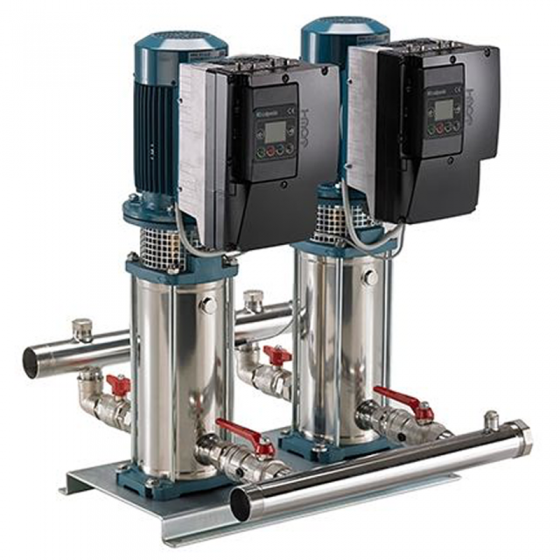

A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXV pumps.
This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has DN125 inlet and DN125 outlet.
Pumps MXV all stainless steel vertical multi-stage centrifugal pumps.
Motors Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.
System One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.
Fluid: Clean Cold Water
Control: IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
Fluid Temp: Max 25 Deg.C
Max Press: 10 bar Operational Pressure
Air Amb: Max 40 Deg.C
Rated: Continuous Service
Pressure vessels (on demand)
Cylindrical with capacity 24 litres, membrane type, air precharged.
Applications As pressure boosting pump for central water systems with low pressure.
Next Day Available
1 Year Warranty
1200mm x 1100mm x 795mm (Length x Width x Height)
400V Three Phase
2 x 4
