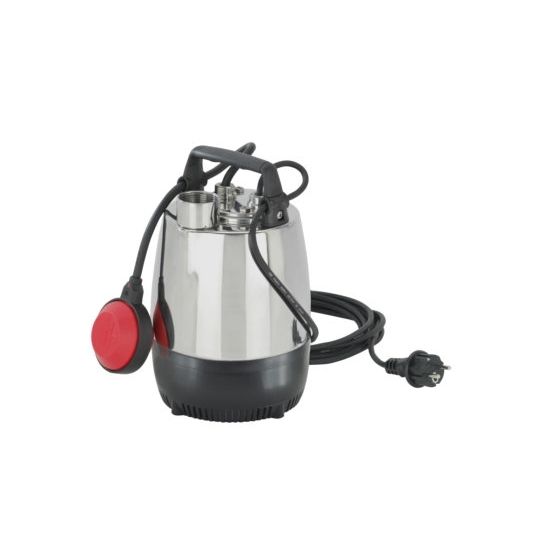

Calpeda MPM 203 Multistage Submersible Pump with 5m Cable (240V)

Calpeda MPM 203 Multistage Submersible Pump with 5m Cable (240V)

Applications

• For clean water containing solids up to 2 mm grain size.
• For draining rooms or or emptying tanks.
• Extraction of water from ponds, streams or pits and for rainwater collection.
• For irrigation purposes.
• For outdoor use a power supply cable of not less than 10m should be used in accordance with: EN 60 335-2-41.

Construction
Multi-stage centrifugal submersible pumps in chrome-nickel stainless steel, with vertical delivery port.Motor cooled by the pumped water passing between the motor jacket and the external jacket.Double shaft seal with oil chamber.

Operating conditions

• Liquid temperature up to 50° C.
• Maximum immersion depth: 5 m.
• Minimum water level with float 70 mm.
• Minimum water level manual operation 15 mm.
• Continuous duty.

Motor

2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
MPM: single-phase 230 V, with float switch and thermal protector.
Incorporated capacitor.
Insulation class F.
Protection IP X8 (for continuous immersion).
Double impregnation humidity-proof dry winding.
Constructed in accordance with: EN 60034-1, EN 60335-1, EN 60335-2-41.

Other features on request

• Other voltages.
• Frequency 60 Hz (as per 60 Hz data sheet).
• Other mechanical seal.
• Cable length 10 m.
• Vertical magnetic float switch.
• Motor suitable for operation with frequency converter.
