Calpeda MXP 404/B Horizontal Multistage Pumps (3 Phase)
Calpeda MXP 404/B Horizontal Multistage Pumps (3 Phase)

Calpeda MXP 404/B Horizontal Multistage Pumps (3 Phase)

SKU
66201041100
Special Price £394.80 £329.00 Regular Price £564.00

Check Delivery is available in your area:



SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

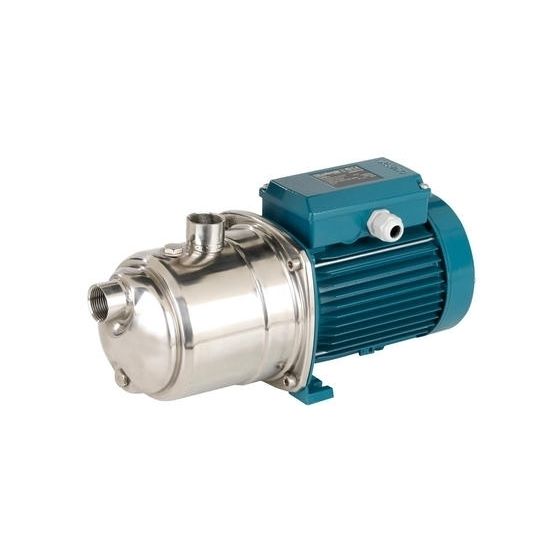

Calpeda MXP 404/B Horizontal Multistage Pumps (3 Phase)

Construction

Horizontal multi-stage close coupled pump. Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top. Stages in Noryl.

Applications

  • For water supply.
  • For domestic use, for garden use and irrigation.

Operating conditions

  • Liquid temperature: 0 °C to +50 °C.
  • Ambient temperature up to +40 °C.
  • Maximum permissible pressure in the pump casing: 8 bar.
  • Continuous duty.

Motor

  • 2-pole induction motor, 50 Hz (n = 2800 rpm).
  • MXP: three-phase 230/400 V ± 10%.
  • MXPM: single-phase 230 V ± 10%, with thermal protector.
  • Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 54.
  • Classification scheme IE2 for three-phase motors from 0,75 kW.
  • Constructed in accordance with: EN 60034-1; EN 60034-30.
  • EN 60335-1, EN 60335-2-41.

Special features on request

  • Other voltages.
  • Frequency 60 Hz (as per 60 Hz data sheet).
  • Motor suitable operation with frequency converter





More Information
Product Type Horizontal Multistage Pump
Brand Calpeda
Warranty 1 Year Warranty
Power Supply 400V Three Phase
Orientation Horizontal
