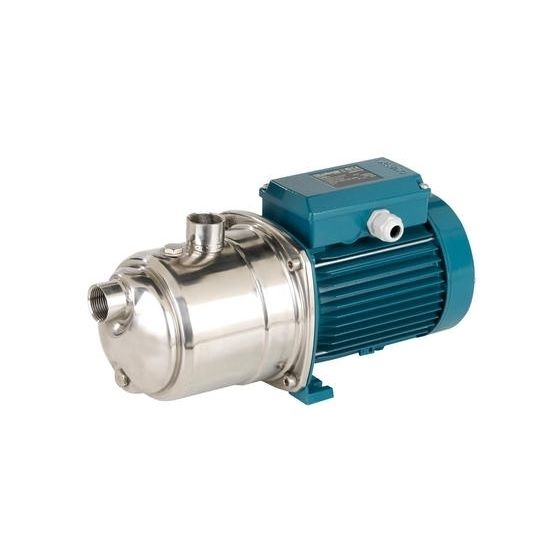

Calpeda MXPM 204/A Horizontal Multistage Pumps (1 Phase)
Construction
Horizontal multi-stage close coupled pump. Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top. Stages in Noryl.
Applications
- For water supply.
- For domestic use, for garden use and irrigation.
Operating conditions
- Liquid temperature: 0 °C to +50 °C.
- Ambient temperature up to +40 °C.
- Maximum permissible pressure in the pump casing: 8 bar.
- Continuous duty.
Motor
- 2-pole induction motor, 50 Hz (n = 2800 rpm).
- MXP: three-phase 230/400 V ± 10%.
- MXPM: single-phase 230 V ± 10%, with thermal protector.
- Capacitor inside the terminal box.
- Insulation class F.
- Protection IP 54.
- Classification scheme IE2 for three-phase motors from 0,75 kW.
- Constructed in accordance with: EN 60034-1; EN 60034-30.
- EN 60335-1, EN 60335-2-41.
Special features on request
- Other voltages.
- Frequency 60 Hz (as per 60 Hz data sheet).
- Motor suitable operation with frequency converter
Product Type | Horizontal Multistage Pump |
---|---|
Custom Shipping | 0.000000 |
Manufacturer | Calpeda |
Model Range | MXPM Range |
Warranty | 1 Year Warranty |
Power Supply | 220V-240V Single Phase |
Product Code | 66300041000 |
Orientation | Horizontal |
