Calpeda MXV-BM 25-307 O Vertical Multistage Pump (1 Phase)

SKU
62L40701000
Special Price £949.20 £791.00 Regular Price £1,356.00 £1,130.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

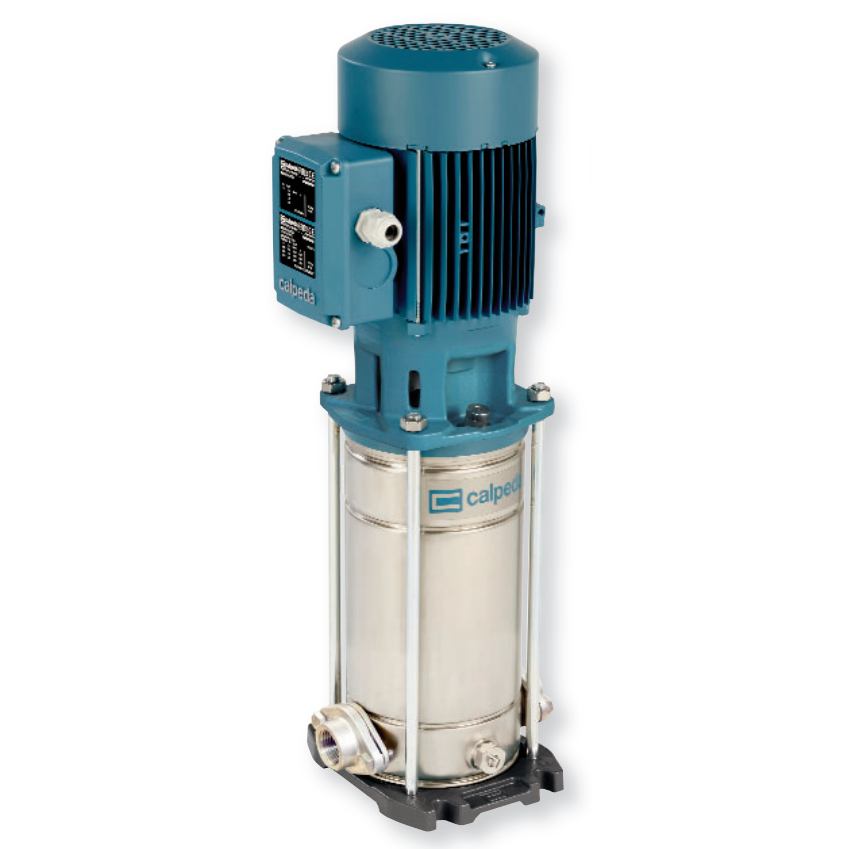

Calpeda MXV-BM 25-307 O Vertical Multistage Pump



Vertical multi-stage close coupled pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).

All parts that come into contact with the liquid, including wet-end covers, are in chrome-nickel stainless steel with corrosion resistant bearing sleeves lubricated by the pumped liquid.

Please note: MXV-BMO models have oval connections / flanges.



Applications

  • For water supply systems.
  • For clean non-explosive liquids, without solid, filamentary or abrasive matter and non-aggressive for stainless steel (with adaptation of sealing materials on request).
  • A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.

Operating conditions

  • Temperature of liquid: from -15 °C to +90 °C.
  • Operating environment temperature: up to 40 °C.
  • Maximum permissible pressure in pump casing: 16 bar.
  • Continuous duty.

Motor

  • 2-pole induction motor, 50 Hz (n = 2900 rpm).
  • MXV-B: three-phase 230/400 V ± 10% up to 3 kW; 400/690 V ± 10% from 3,7 kW.
  • MXV-BM: single-phase 230 V ± 10%, with thermal protector. Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 54.
More Information
Product Type Vertical Multistage Pump
Custom Shipping 0.000000
Manufacturer Calpeda
Warranty 1 Year Warranty
Power Supply 220V-240V Single Phase
Kw Rating 1.1 kW
Max Flow 4.5 m3/h
Max Head 74m
Product Code 62L40701000
Orientation Vertical
