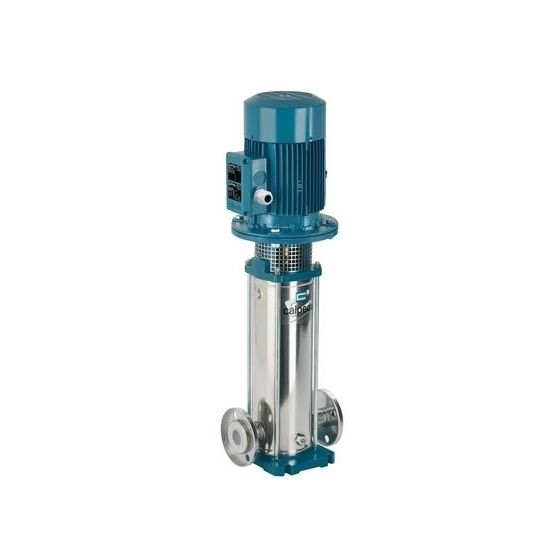

Calpeda MXVL 65-3207/D Vertical Multistage Pump (3 Phase)
Vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line). Corrosion-resistant bearing sleeves lubricated by the pumped liquid. A pump with thrust bearing and sleeve coupling for use of any standard motor with IM V1 construction.
Applications
- For clean non-explosive liquids, without solid, filamentary or abrasive matter (with adaptation of sealing materials on request).
- A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.
Operating conditions
- Temperature of liquid: from -15 °C to +110 °C.
- Operating environment temperature: up to 40 °C.
- Maximum permissible pressure in pump casing: 25 bar.
Product Type | Vertical Multistage Pump |
---|---|
Custom Shipping | 0.000000 |
Manufacturer | Calpeda |
Model Range | MXVL Range |
Warranty | 1 Year Warranty |
Power Supply | 400V-415V Three Phase |
Product Code | 55440721L00 |
Orientation | Vertical |
