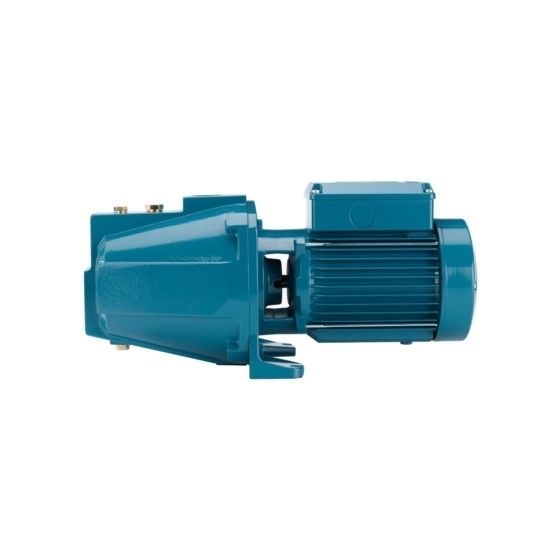

Calpeda NGM 5/16E Self-Priming Pumps (1 Phase)

Product Code: 70B00041100
Calpeda NGM 5/16E Self-Priming Pumps (1 Phase)
Delivery Estimate
3 - 5 working days
1 Year Warranty

Regular Price: £932.40

Special Price £543.90 ex. VAT £652.68 inc. VAT

OR

Want to speak to us?

Open 8.30am - 5pm Mon to Fri

Order by phone and get advice.

Freephone 0333 323 2329

Description

Calpeda NGM 5/16E Self-Priming Pumps (1 Phase)

Calpeda NGM 5/16E Self-Priming Pumps (1 Phase)



Construction

Close-coupled self-priming shallow well jet pumps with built-in ejector. NG: version with pump casing and lanter bracket in cast iron.

Applications

  • For drawing water out of a well.
  • As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
  • For clean liquids or slightly dirty surface water.
  • For garden use.
  • For washing with a jet of water.

Operating conditions

  • Liquid temperature up to 40 °C.
  • Ambient temperature up to 40 °C.
  • Maximum permissible working pressure up to 10 bar.
  • Continuous duty.

Motor

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • NG: three-phase 230/400 V ± 10%.
  • Capacitor inside the terminal box.
  • Insulation class F.
  • Protection IP 54.
  • Classification scheme IE3 for three-phase motors from 0,75 kW.
  • Constructed in accordance with: EN 60034-1; EN 60034-30. EN 60335-1, EN 60335-2-41.





Product Downloads
Specification
SKU 70B00041100
Warranty 1 Year Warranty
Weight (kg) 29.2000
Power Supply 240V Single Phase
Orientation Horizontal
