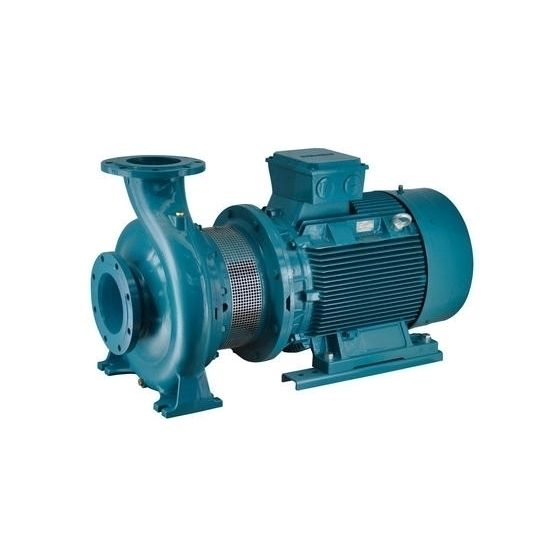

Calpeda NM4 125/25E/B End Suction Pump
Calpeda NM4 125/25E/B End Suction Pump

Calpeda NM4 125/25E/B End Suction Pump

SKU
60901883000
Special Price £3,300.36 £2,750.30 Regular Price £4,714.80

Check Delivery is available in your area:



SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

Calpeda NM4, NMS4 125/25E/A Single Stage End Suction Pump

Close-coupled centrifugal pumps; electric motor with extended shaft directly connected to the pump up to 15 kW, new bracket construction for standard motors (Stub-shaft construction) from 18,5 to 75 kW with integrated thrust bearing.

Pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733 with additional sizes for completion.

NM4: version with pump casing and lanter bracket in cast iron.

B-NM4: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted).

Connections

NM4 25/… : Threaded ports ISO 228. from NM4 32/.. to NMS4 150/.. : Flanges according to PN 10, EN 1092-2.

Counter-flanges (on request)

  • from NM4 32/.. to NM4 50/.. : Screwed flanges EN 1092-1, PN 16.
  • from NM4 32/.. to NMS4 150/.. : Flanges for welding EN 1092-1, PN 10.

Applications

  • For clean liquids without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0,2%).
  • For water supply.
  • For heating, air conditioning, cooling and circulation plants.
  • For civil and industrial applications.
  • When low noise operating is required.
  • For irrigation.
More Information
Product Type Single Stage End Suction Pumps
Brand Calpeda
Warranty 1 Year Warranty
Orientation Horizontal
