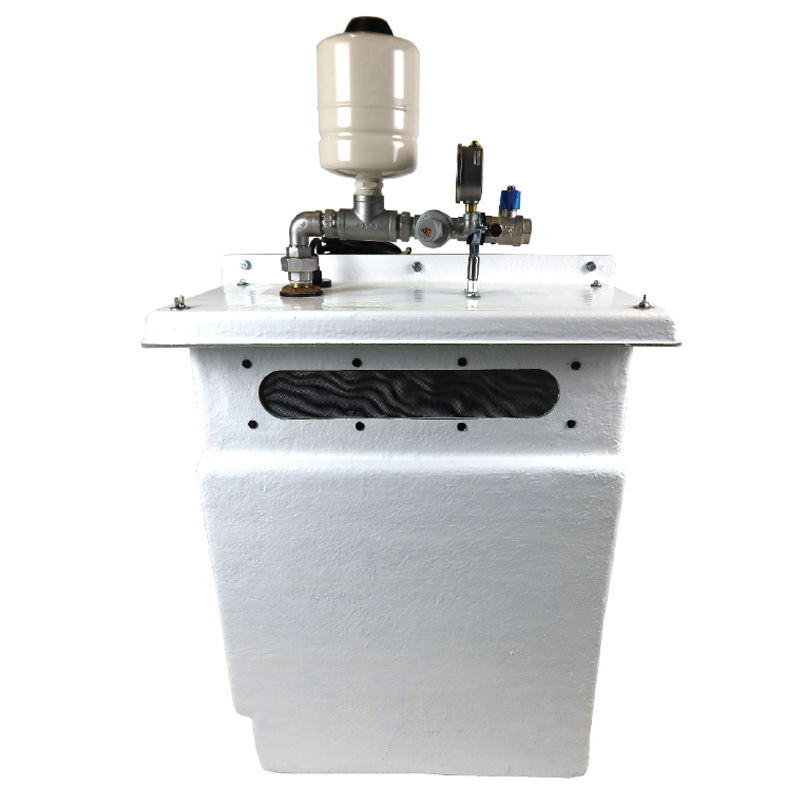

Domoboost Protex Compact 187 Litre CAT 5 Single Pump Packaged Booster Set

Domoboost Protex Compact 187 Litre CAT 5 Single Pump Packaged Booster Set

A Cat 5 booster set is a type of booster set that is designed to prevent backflow. Backflow is the flow of water from a non-potable source back into the potable water supply. This can happen in a number of ways, such as when a hose is connected to a tap and used to wash down a bin or other contaminated area.

The Domoboost Protex Cat 5 booster set consists of two main components: a break tank and a booster pump. The break tank is a small, sealed tank that stores water.

When the booster pump is turned on, it pumps water from the break tank to the outlet. The break tank provides a barrier between the contaminated water that could be in the hose and the potable water in the outlet. This prevents the contaminated water from backflowing into the potable water supply.

Cat 5 booster sets are used in a variety of applications where there is a risk of backflow, such as:

• Bin wash down
• Garden irrigation
• Laboratories
• Hygienic rooms
• Veterinary surgeries
• Bib taps
• Multi-storey window wash

When choosing a Cat 5 booster set, it is important to consider the following factors:

• The size of the break tank
• The capacity of the booster pump
• The pressure rating of the booster pump
• The type of outlet that the booster set will be connected to

Our Domoboost Protex Compact CAT5 Packaged single pump booster set and tank range, are available as a single pump only with 4 standard tank sizes.

• Quiet in operation, less than 50 decibels
• 4 standard tank sizes available*, 187 litre, 251 litre 305 litre and 375 litre Nominal
• Compact footprint - (All tanks have a footprint of 670mm x 650mm making the units ideal for small plant rooms.)
• WRAS Approved water storage tank manufactured from GRP with 25mm insulation
• WRAS Approved 3/4” High flow ball valve fitted
• Easy access through a standard door
• Suitable for a 1 phase 230 volt supply only
• Low Water Level Protection
• WRAS Approved fully adjustable system pressure-reducing valve fitted
• NO Volt free contacts, (please use Compact B range when required)
• Maximum allowable static head 12 metres
•  Suitable for single or multiple outlets.

*Other tank sizes are available on request, please call our Sales team for more information.
