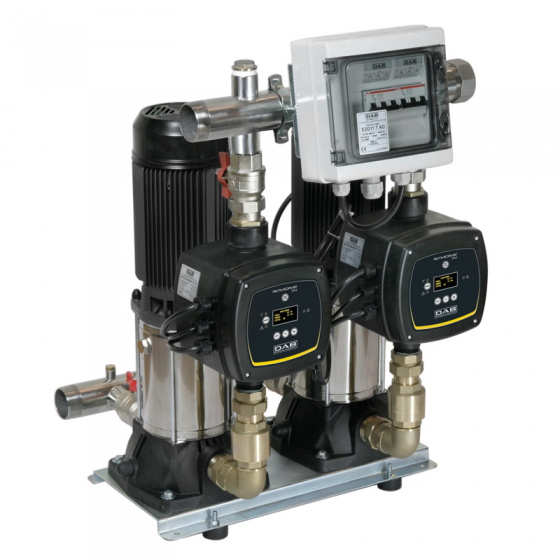

DAB 2 KVC AD 30/50M Twin Pump Booster Set

SKU
60122650
Special Price £5,718.08 £4,765.07 Regular Price £8,168.69 £6,807.24

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

DAB 2 KVC AD 30/50M Twin Pump Booster Sets

DAB 2 KVC AD Twin Pump Booster Set is equipped with Active Driver are designed and manufactured to meet the constant pressure requirements imposed by modern water distribution system technology. Constant pressure control is used in a many number of applications in a various range of sectors. The basic principles that guided our technical engineers in developing these pump sets simplicity,flexibility and reliability.

Electrical Data

  • Voltage: 50Hz, 1 x 230 V ~
  • P2 Nominal:
    - kW x 2: 0.55
    - HP x 2: 0.75

Hydraulic Data

  • Q m3/h: 0,5-9,6
  • H m: 40-17

Connections

  • Suction: 2"
  • Delivery: 2"
  • Weight: 76kg

Applications

  • Water pipelines
  • Irrigation
  • Industry
  • Hotels
  • Residential buildings
  • Spa centres

Short Induction to the Active Driver

The Active Driver module is an all-inclusive device that contains water pipeline connections, pressure sensor, flow sensor and an electronic inverter. When this is added to the discharge line of each electric pump the Active Driver controls the speed of the pump. It is connected in a way that ensures constant pressure irrespective of changes in the water flow rate needs. The water that flows though the Active Drivers connections also helps decrease the heat output created by the internal electronic components.

More Information
KIWA Approval No
Product Type Booster Set
Booster Type Twin Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Model Range 2 KVC AD
Warranty 1 Year Warranty
Power Supply 220V-240V Single Phase
Product Code 60122650
Outlet Connection 2'' Threaded
Inlet Connection 2'' Threaded
Orientation Vertical
Max Pressure 12 bar
