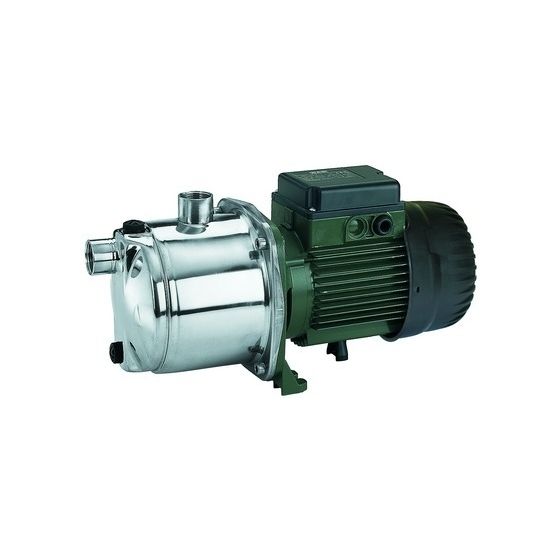

DAB 40/80 M Euroinox Multistage Pump

DAB 40/80 M Euroinox Multistage Pumps

Multistage horizontal centrifugal pump, it is extremely silent running suitable. Euro: pump body in 200 UNI ISO 185 cast iron.  Euroinox: stainless steel pump body. Eurocom: technopolymer pump body.  Motor support in die-cast aluminium, seal holder in AISI 304 steel. Mechanical seal in carbon/ceramic. Rotor shaft in AISI 304 steel. Rotors, diffuser bodies and diffusers in technopolymer. Adjustment rings in stainless steel.

Features

• Protection level of motor: IP 44
• Protection level of terminal board: IP 55
• Insulation class: F
• Operating range: from 10 to 120 l/min. with a head of up to 72 m.

Pumped liquid

• Clean, free from solid or abrasive substances, not viscous, not aggressive, not crystallised, chemically neutral and close to the characteristics of water.
• Liquid temperature range: from 0°C to +35°C C for domestic use (EN 60335-2-41) from 0°C to +40°C for other uses.
• Maximum ambient temperature: +40°C
• Maximum operating pressure: 8 bar (800 kPa)
• Euroinox: self-priming.other uses.
• Maximum ambient temperature: +40°C
• Maximum operating pressure: 8 bar (800 kPa)
• Euroinox: self-priming.

Applications

• Domestic use for water supply and pressurisation
• Irrigation of gardens and vegetable gardens, and moving water in general.
