DAB 50/50 M Euroinox Multistage Pump

SKU
102970300
Special Price £509.14 £424.28 Regular Price £727.34 £606.12

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

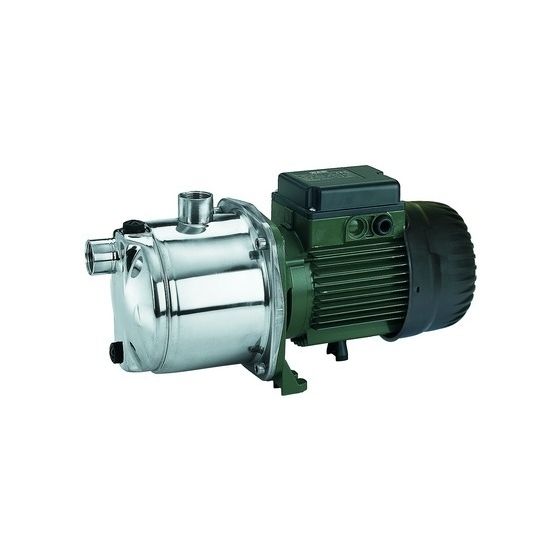

DAB 50/50 M Euroinox Multistage Pumps

Multistage horizontal centrifugal pump, it is extremely silent running suitable. Euro: pump body in 200 UNI ISO 185 cast iron.  Euroinox: stainless steel pump body. Eurocom: technopolymer pump body.  Motor support in die-cast aluminium, seal holder in AISI 304 steel. Mechanical seal in carbon/ceramic. Rotor shaft in AISI 304 steel. Rotors, diffuser bodies and diffusers in technopolymer. Adjustment rings in stainless steel.

Features

  • Protection level of motor: IP 44
  • Protection level of terminal board: IP 55
  • Insulation class: F
  • Operating range: from 10 to 120 l/min. with a head of up to 72 m.

Pumped liquid

  • Clean, free from solid or abrasive substances, not viscous, not aggressive, not crystallised, chemically neutral and close to the characteristics of water.
  • Liquid temperature range: from 0°C to +35°C C for domestic use (EN 60335-2-41) from 0°C to +40°C for other uses.
  • Maximum ambient temperature: +40°C
  • Maximum operating pressure: 8 bar (800 kPa)
  • Euroinox: self-priming.other uses.
  • Maximum ambient temperature: +40°C
  • Maximum operating pressure: 8 bar (800 kPa)
  • Euroinox: self-priming.

Applications

  • Domestic use for water supply and pressurisation
  • Irrigation of gardens and vegetable gardens, and moving water in general.
More Information
Product Type Horizontal Multistage Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Warranty 1 Year Warranty
Product Code 102970300
Orientation Horizontal
