DAB CME 50-1420 M MCE11/C Single Stage Inline Pump

Name: DAB CME 50-1420 M MCE11/C Single Stage Inline Pump
Brand: DAB Pumps
SKU: 60142767
Price: 4423.40 GBP
Availability: InStock

SKU

60142767

Special Price £4,423.40 £3,686.17 Regular Price £6,319.14 £5,265.95

Check Delivery is available in your area:

Postcode

For almost 40 years, DAB Pumps UK have been producing innovate and high quality water pumps, offering incredible solutions for both domestic and commercial water pump needs. The company currently operates five production plants and numerous sales offices throughout the world. This has afforded the company a multinational outlook, maintaining close relationships with many markets. DAB’s commitment to high quality pump products has never wavered. All of these products are rigorously tested to ensure they operate to the highest specifications with a fantastic level of reliability. DAB’s engineering team have the skills and capacity to meet even the most specific of demands from customers. The company has endeavoured to internalise all design and manufacturing processes to retain complete control over all production stages. This allows DAB to constantly engineer new elegant solutions to commercial and domestic water pressure problems. Many of these endeavours are incredibly ambitious and require a team of innovative technical thinkers. The Research and Development branch of the business receives high levels of attention, giving the company great insight into future trends and incoming legislation. This innovation includes the redevelopment of water pump technology, and the incorporation of modern technologies and multimedia tools. We stock a range of DAB water pumps, including DAB booster sets, heating pumps, submersible pumps, a range of DAB silent water pressure booster pumps & sets.

Free Standard Delivery On Most Products Over £100 ex VAT

SERVICE & MAINTENANCE

1 Year Warranty

Need help with your order?

Call us today 0333 323 2329

Product Description

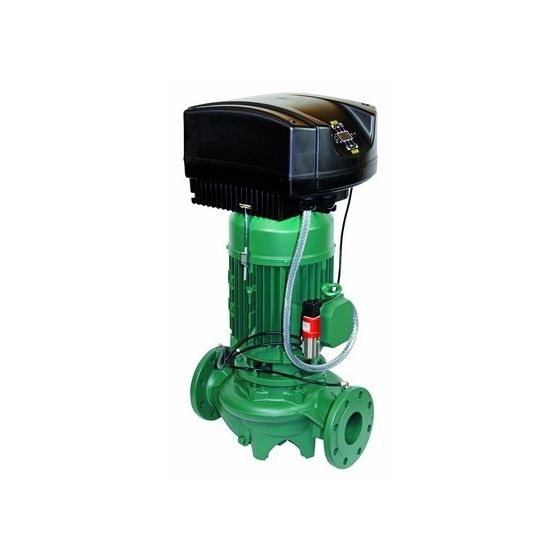

DAB CME 50-1420 Single Stage Inline Pump

Circulator for hot or cold water with in-line ports, it is suitable for installation directly on the pipes in civil and industrial heating, air conditioning, refrigeration, and domestic water systems. This pump is extremely versatile thanks to the use of the MCE/C inverter, the circulator performance is such as to allow automatic adaptation to meet the various requirements of the system, while keeping pressure differentials unchanged. Available in single and twin version. PN 16 flanged inlet and delivery mouths, fitted with threaded holes for pressure gauges. Pump body and support in cast iron, impeller in cast iron or technopolymer depending on model (in bronze, on request, only from DN 65 to DN 150).

Stainless steel drive shaft. Sealing device: standardised mechanical seal made to DIN 24960 in carbon / carborundum with O’ rings in EPDM. 4-pole three-phase indication motor with external cooling. Rotor running on ball bearings, oversized to ensure low noise and durability.

Constructed following the CEI 2-3 standards.

Features

Operating range: from 1.2 to 360 m3/h with head up to 34 meters.
Liquid temperature range: -10 °C ÷ +130 °C for DN 40 - 50 and all DCME -10 °C ÷ +140 °C for DN 65 - 150
Liquid quality requirements: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallised and chemically neutral and close to the characteristics of water.
Installation: fixed, horizontal or vertical provided the motor is always above the pump.
Maximum ambient temperature: +40°C.
Maximum working pressure: 16 bar.
Protection rating: IP 55.
Insulation Class: F.
Flanging: PN 16.
Counter-flanges on request: DN 40 - DN 50 - DN 65 - DN 80 - DN 100 - DN 125 - DN 150; PN 16.

Specification

More Information
Product Type	In-line Circulator Pump
Custom Shipping	0.000000
Manufacturer	DAB Pumps
Model Range	CME
Warranty	1 Year Warranty
Power Supply	220V-240V Single Phase
Product Code	60142767
Orientation	Vertical
