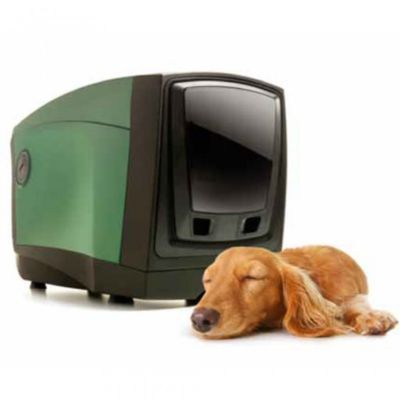

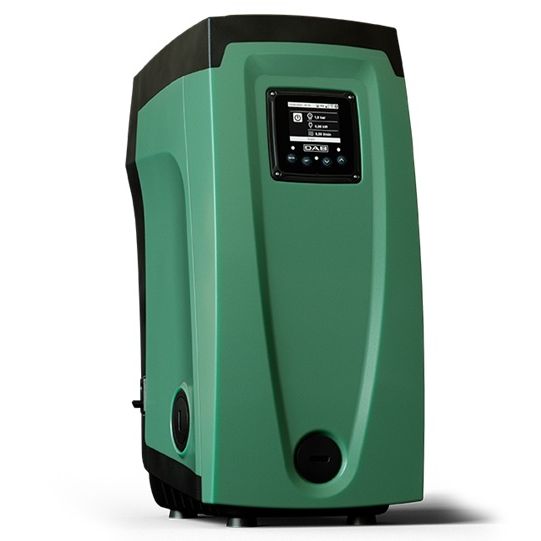

DAB ESYBOX Home Booster Set



The ESYBOX is the new integrated system by DAB for water pressure boosting in domestic and residential applications.

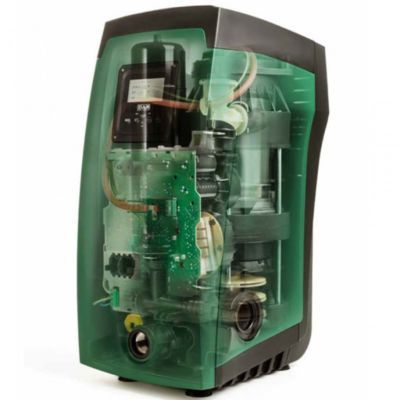

ESYBOX does not require any additional component for its installation because it consists of a self-priming multistage pump, electronics for control and management, pressure and flow sensors, a high-resolution LCD orientable display and an integrated expansion vessel of 2 litres.



Features

Efficient: Thanks to the Inverter technology, ESYBOX draws the energy necessary according to the water requirements, thereby avoiding futile wastes and allowing considerable economic savings.



Versatile: it can be installed in a vertical or horizontal position, in a ventilated room or in a recess.



Silent: The noise perceived as well the vibrations are reduced to the minimum and the system is whisper-silent only 45 dB in standard use. Thanks to the watercooled motor, the protective casings in sound-deadening ABS, the vibration-damping feet and the inverter electronics that modulate the motor revolutions according to the set pressure (set point) and the flow requested.



Compact: it saves 30% of space in comparison with a traditional system.



Easy to install and use: Maintenance is easy too thanks to the design of the technical compartment, which allows access to the expansion, vessel, the rotor shaft and the second filling cap. This area also houses all the tools needed for both maintenance and the first installation, such as the user guide and the instrument for easy extraction of the cartridge of the non-return valve.



Wireless: has a wireless device to facilitate the creation of pressure booster sets and for connection to other DAB devices.

More Information
Delivery Estimate In stock
Product Type Home Booster Set
Custom Shipping 0.000000
Manufacturer DAB Pumps
Warranty 3 Year Warranty
Power Supply 220V-240V Single Phase
Kw Rating 1.55 kW
Noise Rating 45 dB

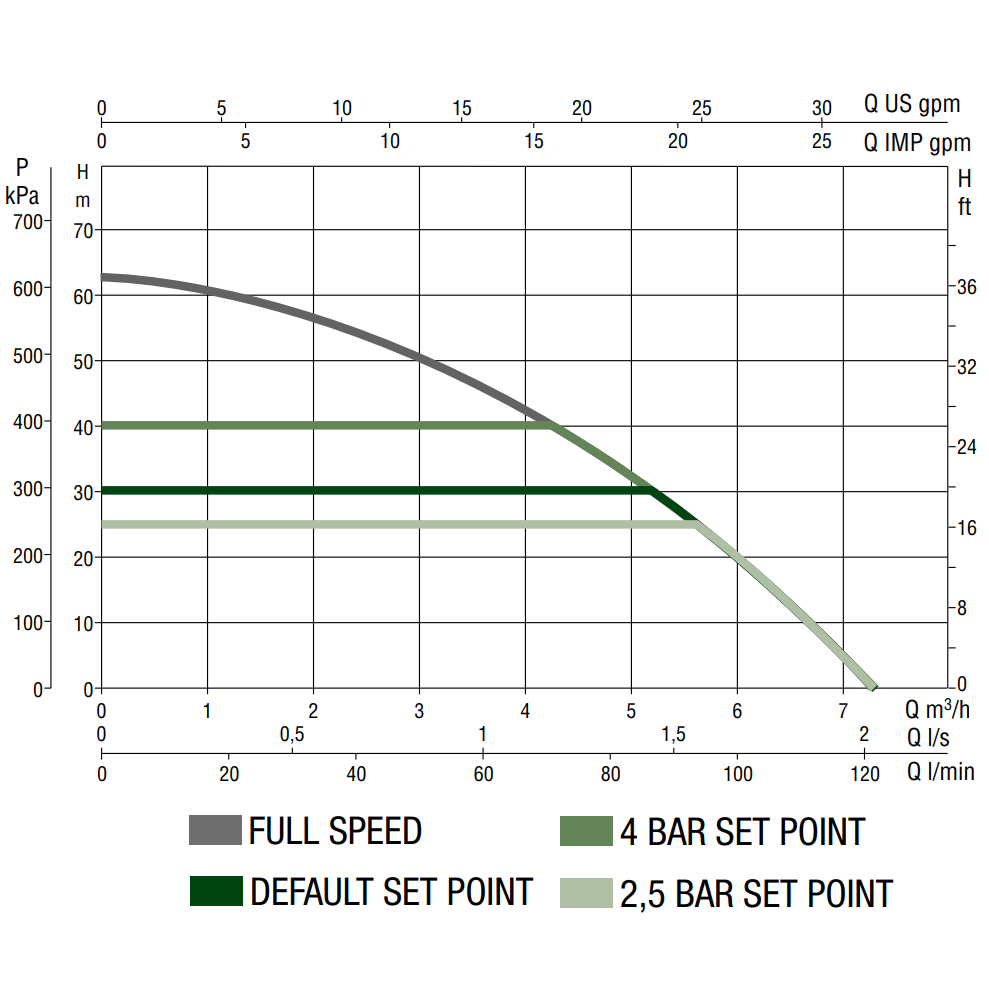

Max Flow Capacity up to 120 l/min
Max Head Head up to 65 m
Product Code 60161181
System Type Potable (Drinking)
Pump Quantity 1 Pump
