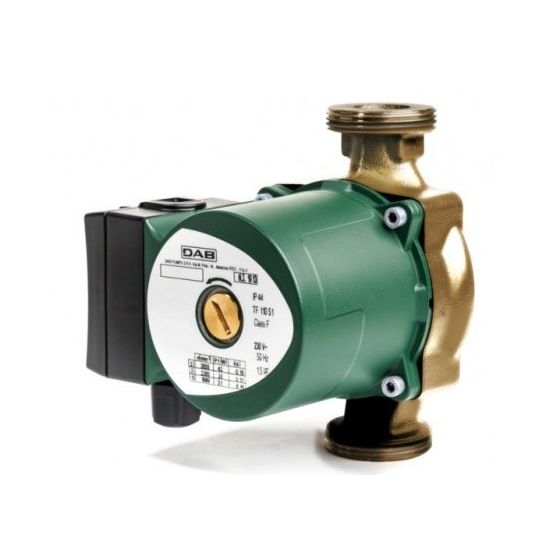

DAB EVO VS 65/150 B 3 Speed Bronze Circulating Pump
The VS by DAB is a wet rotor circulator with a bronze pump body that is used in household and residential systems to circulate hot water that is fit for drinking. The motor shaft can be manually unblocked. The VS has threaded suction and delivery ports, an asynchronous motor with overload protection, and a vent plug.
- Operating range: from 0.6 - 3.7 m3/h with head of up to 6 metres.
- Copper piping welded union connectors: Ø 22 mm Ø 28 mm.
- Working pressure: 10 bar (1000 kPa).
- Liquid temperature range: from -10 °C to +85 °C for sanitary uses, and +110 °C for other uses. To avoid the formation of calcium, do not exceed 65 °C, and include a calcium removal system when the hardness of the water exceeds 15 French degrees.
| Delivery Estimate | In stock |
|---|---|
| Product Type | Hot Water Circulation Pump |
| Custom Shipping | 0.000000 |
| Manufacturer | DAB Pumps |
| Model Range | Evo VS |
| Dimensions | 124 x 104 x 150 (W x D x H) |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 77 W |
| Max Flow | 3.7 m3/h |
| Max Head | 6m |
| Product Code | 60185007H |
| Material | Bronze |
| Port-to-Port Distance (mm) | 150 |
| Connection Type | 1 1/2" |
