DAB EVOPLUS B 120/280.50 SAN M Single Head Circulator

SKU
60151169
Special Price £2,398.81 £1,999.01 Regular Price £3,998.02 £3,331.68

Check Delivery is available in your area:



WRAS Approved Product
Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

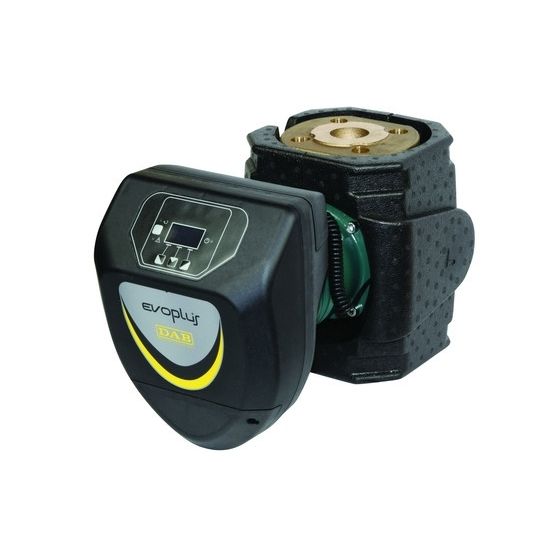

DAB Evoplus B 120/280.50 SAN M Circulating Pump

EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings, like:

  • Large residential buildings
  • Condominiums and small apartment buildings
  • Homes
  • Real estate buildings
  • Private and public hospitals
  • Schools
  • Office buildings



The SAN version, with bronze pump body, was specifically developed for the recirculation of sanitary water. With the constant temperature mode of operation, the temperature inside the recirculation piping is controlled without the need for thermostat valves, therefore optimising comfort.

Bronze pump body. Motor casing in diecast aluminium. Technopolymer impeller. Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor sleeve and closing flange, stator sleeve in carbon fibre composite. Ceramic thrust ring, ethylene propylene sealing rings. Synchronous motor with permanent magnet rotor.



Technical Data

Manufacturer DAB
Model Evoplus B 120/280.50 SAN M
Part Number 60151167
Warranty 2 Years
Max Flow 9.15 l/s
Max Head 12m
Voltage 240V 1Ph 50Hz
Centre distance 280mm
Full Load Current (FLC) 2.5A
Motor Size (kW/W) 530W
Dimensions 230mm High x 280mm Wide x 413mm Deep
Material Bronze
Pump couplings DN50 PN10
Liquid temperature range from -10°C to +110°C.
Maximum Working pressure 16 bar (1600 kPa)
Protection rating IP 44
Insulation class F
More Information
Product Type Hot Water Circulation Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Warranty 1 Year Warranty
Product Code 60151169
