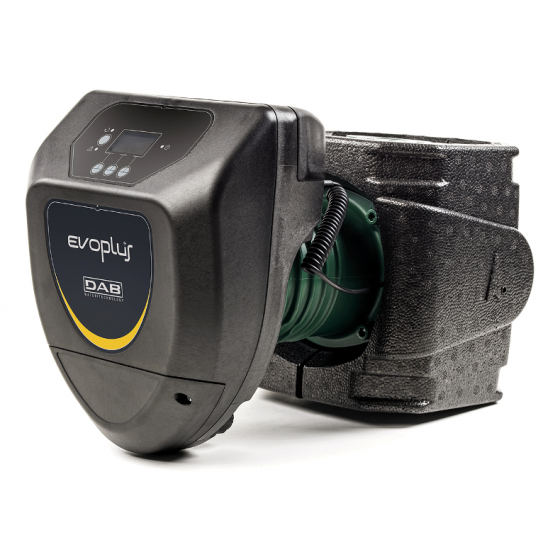

DAB Evoplus B 150/340.65 SAN M Single Head Circulator

Product Code: 60151179
DAB Evoplus B 150/340.65 SAN M Single Head Circulator
Delivery Estimate
3 - 5 working days
1 Year Warranty

Regular Price: £3,588.00

Special Price £2,093.00 ex. VAT £2,511.60 inc. VAT


Want to speak to us?

Open 8.30am - 5pm Mon to Fri

Order by phone and get advice.

Freephone 0333 323 2329


DAB Evoplus B 150/340.65 SAN M Single Head Circulator

DAB Evoplus B 150/340.65 SAN M Circulating Pump

Circulator for domestic hot water systems of the closed circuit pressurized type or open circuit type.

Bronze pump body. Motor casing in die-cast aluminium.

Technopolymer impeller.

Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid.

Stainless steel rotor sleeve and closing flange, stator sleeve in carbon fibre composite.

Ceramic thrust ring, ethylene propylene sealing rings.

Synchronous motor with permanent magnet rotor.


  • Operating range: from 2 to 12 m3/h with head up to 11 meters.
  • Liquid temperature range: from -10 °C to 110 °C.
  • Pumped liquid: clean, free from solids and mineral oils, not viscous, chemically neutral, close to the properties of water.
  • Maximum working pressure: 16 bar (1600 kPA).
  • Protection rating: IP 44.
  • Insulation class: F.
  • Installation: with horizontal motor shaft.
Product Downloads
SKU 60151179
Warranty 1 Year Warranty
Weight (kg) 27.0000
