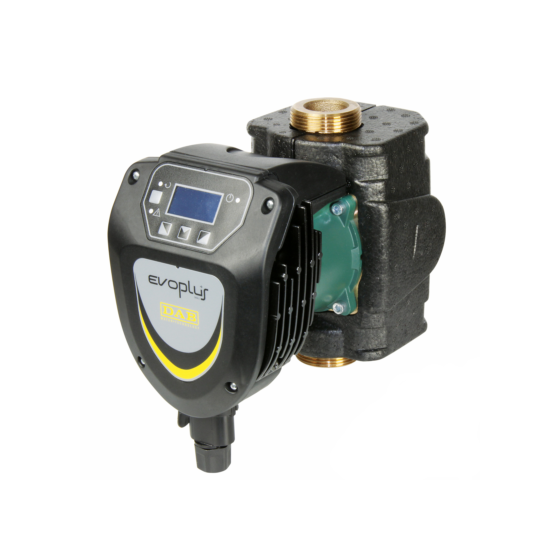

DAB EVOPLUS B 60/220.32 Small SAN M Single Head Circulator

SKU
60151151
Special Price £755.81 £629.84 Regular Price £1,259.68 £1,049.73

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
2 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

DAB EVOPLUS B 60/220.32 SAN M Small Single Head Circulator for Hot Water (Without Flanges)

EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings, like:

  • Large residential buildings
  • Condominiums and small apartment buildings
  • Homes
  • Real estate buildings
  • Private and public hospitals
  • Schools
  • Office buildings



Circulator for domestic hot water systems of the closed circuit pressurized type or open circuit type. Bronze pump body. Motor casing in die-cast aluminium. Technopolymer impeller. Ceramic motor shaft mounted on graphite bushings lubricated by the pumped liquid. Stainless steel rotor sleeve, stator sleeve and closing flange. Ceramic thrust ring, ethylene propylene sealing rings. Synchronous motor with permanent magnet rotor.



Technical Data

Manufacturer DAB
Model Evoplus SMALL B 60/220.32 SAN M
Part Number 60151151
Warranty 2 Years
Max Flow 2.45 l/s
Max Head 6m
Voltage 240V 1Ph 50Hz
Centre distance 220mm
Full Load Current (FLC) 0.75A
Motor Size (kW/W) 105W
Dimensions (kW/W) 140mm High x 220mm Wide x 248mm Deep
Material (kW/W) Bronze
Pump couplings DN32 PN10
Liquid temperature range from -10°C to +110°C.
Maximum Working pressure 16 bar (1600 kPa)
Protection rating IP 44
Insulation class F
More Information
Product Type Hot Water Circulation Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Warranty 2 Year Warranty
Power Supply 220V-240V Single Phase
Kw Rating 0.12 kW
Product Code 60151151
Port-to-Port Distance (mm) 220
Connection Type DN 32
