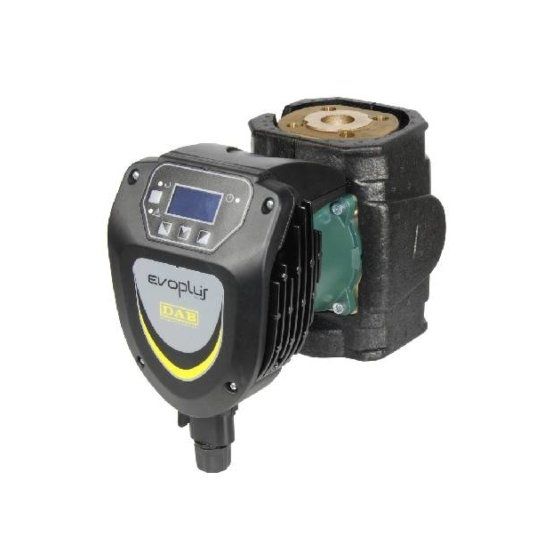

DAB Evoplus B 60/250.40 Small SAN M Circulating Pump

Product Code: 60151155
DAB Evoplus B 60/250.40 Small SAN M Circulating Pump
Delivery Estimate
3 - 5 working days
1 Year Warranty

Regular Price: £922.80

Special Price £538.30 ex. VAT £645.96 inc. VAT

OR

Want to speak to us?

Open 8.30am - 5pm Mon to Fri

Order by phone and get advice.

Freephone 0333 323 2329

Description

DAB Evoplus B 60/250.40 Small SAN M Circulating Pump

DAB Evoplus B 60/250.40 Small SAN M Circulating Pump

EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings, like:

  • Large residential buildings
  • Condominiums and small apartment buildings
  • Homes
  • Real estate buildings
  • Private and public hospitals
  • Schools
  • Office buildings

Circulator for domestic hot water systems of the closed circuit pressurized type or open circuit type. Bronze pump body. Motor casing in die-cast aluminium. Technopolymer impeller. Ceramic motor shaft mounted on graphite bushings lubricated by the pumped liquid. Stainless steel rotor sleeve, stator sleeve and closing flange. Ceramic thrust ring, ethylene propylene sealing rings. Synchronous motor with permanent magnet rotor.

Technical Data

Manufacturer DAB
Model Evoplus B 60/250.40 Small SAN M
Part Number 60151155
Warranty 2 Years
Max Flow 2.70 l/s
Max Head 6m
Voltage 240V 1Ph 50Hz
Centre distance 250mm
Full Load Current (FLC) 0.75A
Motor Size (kW/W) 105W
Dimensions (kW/W) 140mm High x 250mm Wide x 248mm Deep
Material (kW/W) Bronze
Pump couplings DN40 PN10
Liquid temperature range from -10°C to +110°C.
Maximum Working pressure 16 bar (1600 kPa)
Protection rating IP 44
Insulation class F
Product Downloads
Specification
SKU 60151155
Warranty 1 Year Warranty
Weight (kg) 9.3000
