DAB Evosta2 40-70/150 SAN (1") Circulating Pump

SKU
60186164
Special Price £268.56 £223.80 Regular Price £447.60 £373.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
2 Year Warranty
In stock

Need help with your order?

Phone icon

Call us today 0333 323 2329

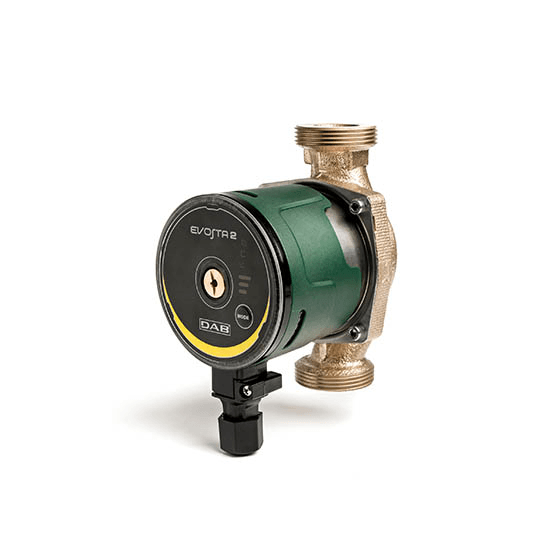

DAB Evosta2 40-70/150 SAN (1") Circulating Pump

The new range of EVOSTA 2 SAN circulators by DAB combines the strength of a mechanical circulator with the benefits of an electronic circulator. The EVOSTA 2 SAN allows for the recirculation of domestic hot water in domestic and residential systems.

Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI  0.18, as well as the protection class IPX5 and the integrated bleeding plug. EVOSTA 2 SAN family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 2 SAN circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.

Construction Features

Bronze pump body and wet rotor motor. Steel motor casing, technopolymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid.
Stainless steel rotor liner and closing flange. Graphite thrust ring. EPDM seal ring and brass air bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection.

Control Panel

The settings of EVOSTA 2 SAN circulators can be modified in the control panel on the facia of the pump. The pump has nine settings that can be selected scrolling the MODE button. Six illuminated segments on the display indicate the settings of the pump.

Technical Data

Manufacturer DAB
Model Evosta2 40-70/150 SAN
Part Number 60186164
Warranty 2 Years
Max Flow 60 l/m
Max Head 6.9m
Voltage 230V 1Ph 50Hz
Centre distance 150mm
Full Load Current (FLC) 0.043-0.32A
Motor Size (kW/W) 35W
Dimensions 135mm B x 150mm L x 91mm H
Pump Body Material Bronze
Pump connection DN25 THREADED (G 1 1/2")
Liquid temperature range from -10 °C to +110°C
Working pressure 10 bar (1000 kPa)
Protection rating IPX5
Insulation class F
More Information
Delivery Estimate In stock
KIWA Approval No
Product Type Hot Water Circulation Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Warranty 2 Year Warranty
Dimensions 135mm x 150mm x 91mm (BxLxH)
Power Supply 220V-240V Single Phase
Kw Rating 35W
Max Flow 60 l/m
Max Head 6.9 m
Product Code 60186164
Outlet Connection 1 1/2" Threaded
Port-to-Port Distance (mm) 150
Inlet Connection 1 1/2" Threaded
Max Pressure 10 bar
Max Temperature 110°C
