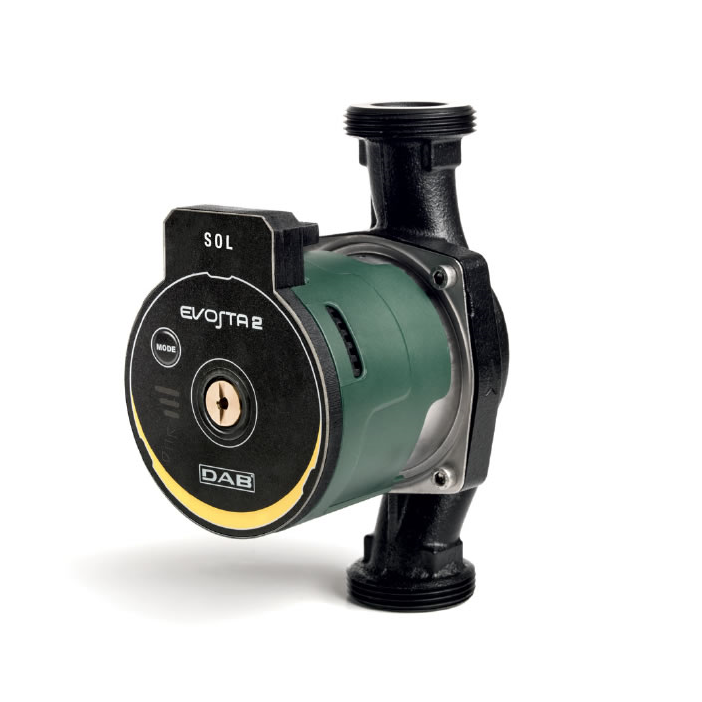

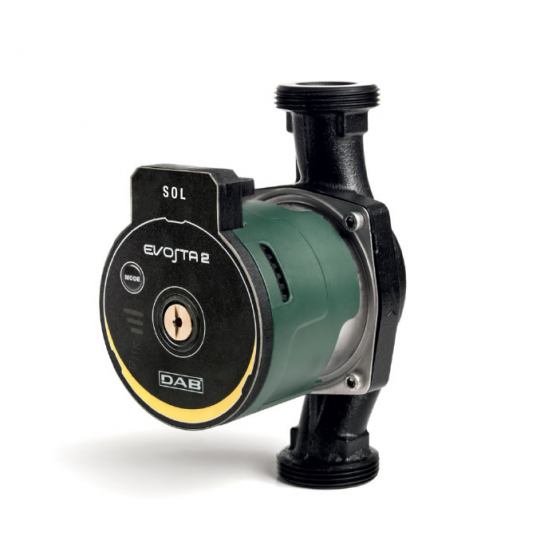

DAB Evosta2 20-75/130 SOL (1/2")  Circulating Pump

EVOSTA 2 SOL is the new range of DAB circulators that combines the strength of the mechanical circulator with the benefits of the electronic circulator.
Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency index of EEI ≤ 0.20, as well as the IPX4 protection class and the integrated breather plug, the EVOSTA 2 SOL family ranks as one of the best products in the category in terms of performance and reliability.

The range of EVOSTA 2 SOL circulators is the perfect substitute for old three-speed circulators due to its compact size and all-round performance.
The product is also extremely user-friendly, with a single key for sequential setting and direct access to the motor shaft for unlocking this when necessary.

Construction Features

Cast iron pump body with cataphoresis paint coating and wet rotor motor. Steel motor casing, technopolymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor liner, stator liner and closing flange. Graphite thrust ring. EPDM seal ring and brass air breather plug.
Thanks to the internal protection of the motor, the pump does not require overload protection.

Control Panel

The functions of the EVOSTA 2 SOL circulators can be modified at the control panel on the cover of the electronic control device. The pump has nine settings that can be selected using the MODE button. Six illuminated segments on the display indicate the settings of the pump.

Technical Data

Manufacturer DAB
Model Evosta2 20-75/130 SOL (1/2")
Part Number 60188450
Warranty 2 Years
Max Flow 66 l/m
Max Head 7.5m
Voltage 230V 1Ph 50Hz
Centre distance 130mm
Full Load Current (FLC) 0.007-0.4A
Motor Size (kW/W) 47W

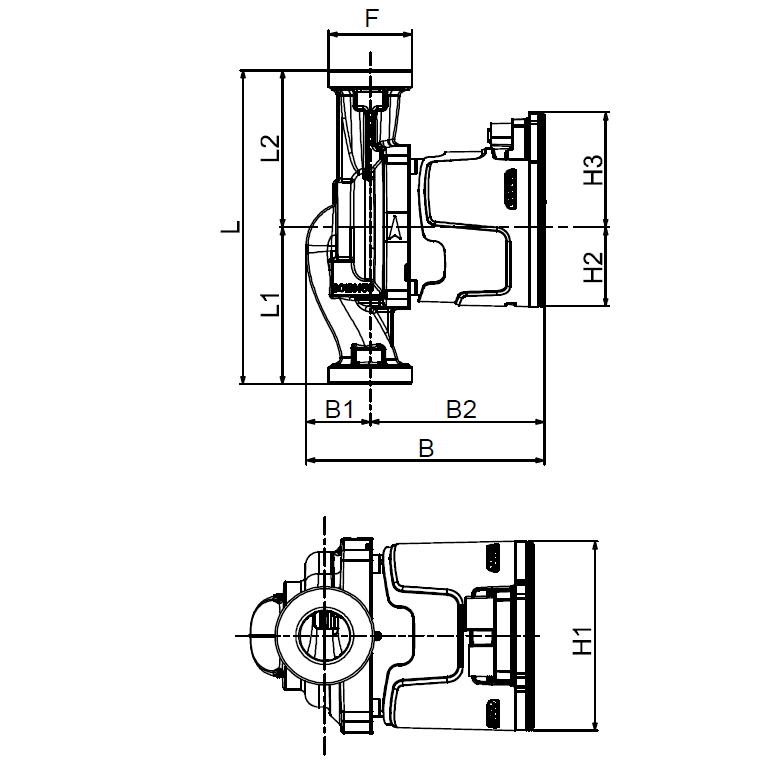

Dimensions 135mm B x 130mm L x 91mm H1
Pump Body Material Cast Iron
Pump connection DN15 THREADED (G -1")
Liquid temperature range from -10 °C to +110°C
Working pressure 10 bar (1000 kPa)
Protection rating IPX4
Insulation class F
More Information
KIWA Approval No
Product Type Heating Circulation Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Warranty 2 Year Warranty
Power Supply 220V-240V Single Phase
Product Code 60188450
System Type Heating
