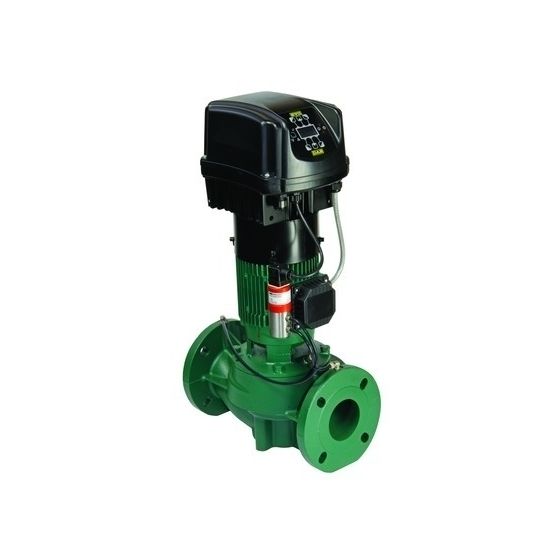

DAB KLPE 65-1200 M MCE11/C IE3 Single Stage Inline Pump
Circulator for hot or cold water with in-line ports, it is suitable for installation directly on the pipes in civil and industrial heating, air conditioning, refrigeration, and domestic water systems. This pump is extremely versatile thanks to the use of the MCE/C inverter, the circulator performance is such as to allow automatic adaptation to meet the various requirements of the system, while keeping pressure differentials unchanged.
| Product Type | In-line Circulator Pumps |
|---|---|
| Product Code | 60201935 |
| Manufacturer | DAB Pumps |
| Model Range | KLPE |
| Warranty | 1 Year Warranty |
| Dimensions | A = 262mm, B = 200mm, C = 100mm, D = 110mm, D1 = 130mm, D2 = 145mm, D3 = 185mm, D4 = 4 buttonholes, DNA = 65mm, DNM = 65mm, H = 641mm, H1 = 82mm, L = 340mm, L1 = 170mm, L2 = 170mm, M = 2 holes M1 |
| Inlet Connection | DN65 Flanged |
| Outlet Connection | DN65 Flanged |
| Kw Rating | 1.39 kW |
| Power Supply | 220V-240V Single Phase |
| Max Flow | 833 l/m |
| Max Head | 12m |
