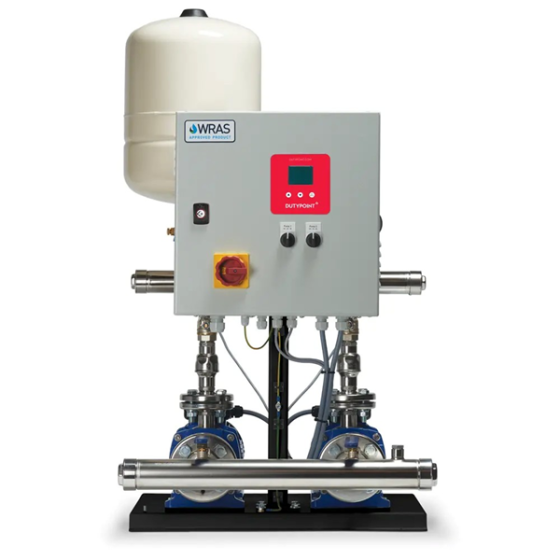

Dutypoint VG2-1506-055T-MAB Twin Pump Booster Set

Dutypoint VG2-1506-055T-MAB Twin Pump Booster Set

The Dutypoint VG2-1506-055T-MAB twin pump booster set delivers reliable, high-efficiency pressure management. Featuring two premium stainless steel multistage pumps securely mounted on a durable, powder-coated steel base plate, this system is built for longevity.

Driven by the advanced MAB variable speed control panel, it delivers a nominal flow rate of 4.1 l/s per pump and a nominal head pressure of up to 7 bar. For maximum operational flexibility, this set can be easily configured for either duty-assist or duty-standby modes. Designed for use in large domestic, commercial and industrial applications.

Specification

• Max. operating flow (per pump): 8 l/s
• Max. operating pressure: 7 bar
• Closed valve pressure: 8.7 bar
• Max. system pressure rating: 10 bar
• Max. system temperature: 23 °C
• IP Rating: IP44
• Pressure vessel(s): 1 x 24 litres
• Per pump Current @ Full Load: 9.5 A per pump
• Supply voltage: 400v
• Electrical phase: 3

Features

• Fully WRAS-approved product
• Variable speed pump control
• Duty-assist and duty-standby modes
• 304 stainless steel pumps
• 304/316 stainless steel manifold assembly
• 24-litre pressure vessel with flow through isolation and drain valve
• Air-cooled inverters
• BMS volt-free contacts
• External enable on/off
• Hand/off/auto switches
• External low water
• Dry run protection
• Glycerine filled pressure gauge
• Pump check valve(s)
