Dutypoint VG3-0308-007M-MAB Three Pump Booster Set

Dutypoint VG3-0308-007M-MAB Three Pump Booster Set

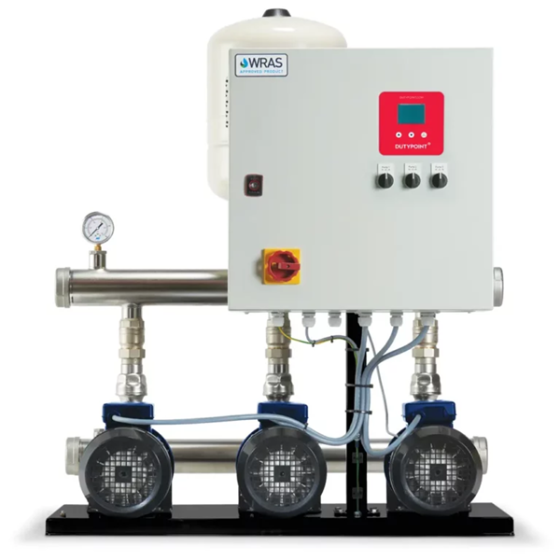

The Dutypoint VG3-0308-007M-MAB three pump booster set delivers reliable, high-efficiency pressure management. Featuring three premium stainless steel multistage pumps securely mounted on a durable, powder-coated steel base plate, this system is built for longevity.

Driven by the advanced MAB variable speed control panel, it delivers a nominal flow rate of 0.83 l/s per pump and a nominal head pressure of up to 4.7 bar. For maximum operational flexibility, this set can be easily configured for either duty-assist or duty-standby modes. Designed for use in large domestic, commercial and industrial applications.

Specification

• Max. operating flow (per pump): 1.2 l/s
• Max. operating pressure: 4.7 bar
• Closed valve pressure: 6 bar
• Max. system pressure rating: 10 bar
• Max. system temperature: 23 °C
• IP Rating: IP44
• Pressure vessel(s): 1 x 24 litres
• Per pump Current @ Full Load: 4.4 A per pump
• Supply voltage: 230v
• Electrical phase: 1

Features

• Fully WRAS-approved product
• Variable speed pump control
• Duty-assist-assist and duty-assist-standby modes
• 304 stainless steel pumps
• 304/316 stainless steel manifold assembly
• 24-litre pressure vessel with flow through isolation and drain valve
• Air-cooled inverters
• BMS volt-free contacts
• External enable on/off
• Hand/off/auto switches
• External low water
• AV mounts & flexible connectors optional *speak to our Sales team for more info

Not sure which model you need? Contact our technical sales team today.
