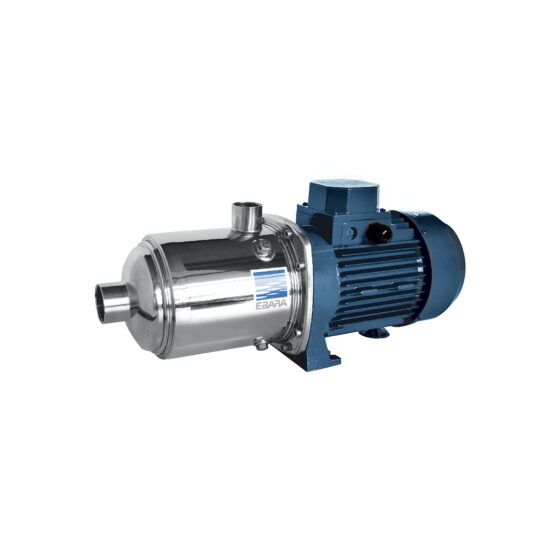

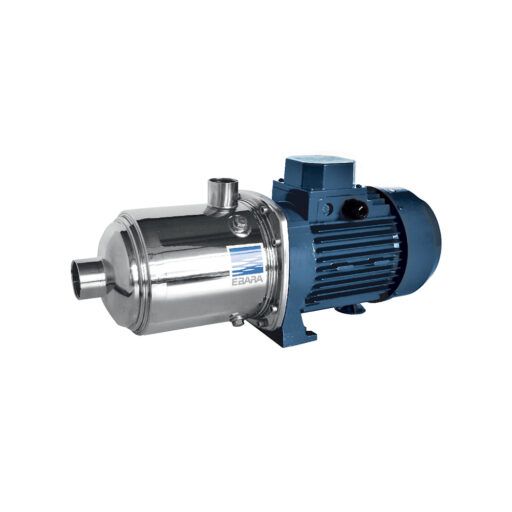

The Ebara Matrix 3-2T/0.45M is a Horizontal Multistage pump in a Single Phase. Suitable for increasing pressure, water boosting, heating and conditioning systems, small-scale garden watering, vehicle washing, handling clean water and industrial plants.
The Matrix pump body and impeller are made from AISI 304 and WRAS approved (for the standard version up to +85°C)
- Maximum working pressure: 10 bar
- Liquid temperature range (clear water)
- from -15°C to + 85°C for the standard version
- Poles: 2
- Insulation class: F
- Protection degree: IP55
- Voltage: Single phase 1~230V ±10%
- Pump body in AISI 304 (EN 1.4301) stainless steel
- Impeller in AISI 304 (EN 1.4301) stainless steel
- Shaft in AISI 304 (EN 1.4301) stainless steel
- Mechanical seal: Standard = Ceramic/Carbon/EPDM
- Motor support in EN AB-AISi11Cu2(Fe) (microcasted aluminium)
- Connections (1" Suction and Discharge)
Capacity: up to 4.8 m3/h
Total Head: up to 22.6 m
| Product Type | Horizontal Multistage Pump |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | EBARA pumps |
| Model Range | Matrix |
| Warranty | 1 Year Warranty |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.45 |
| Product Code | 2470320000 |
| Orientation | Horizontal |
