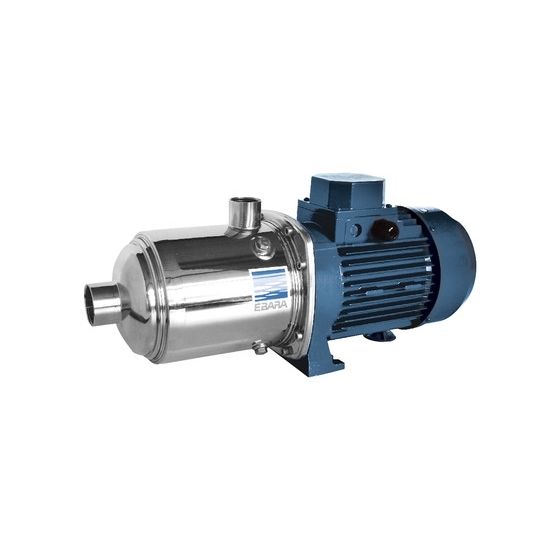

Ebara Matrix/E 3-9T/1.5M Horizontal Multistage Pump (1 Phase)

SKU
2470390000E
Special Price £901.24 £751.03 Regular Price £1,386.52 £1,155.43

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

Ebara Matrix 3-9T/1.5M Horizontal Multistage Pumps (Single Phase)

Applications

  • Industrial washing
  • Pressure boosting units
  • Industrial plants
  • Distribution and treatment of water
  • Heating and air conditioning
  • Cooling and chiller
  • Irrigation
  • Recovery of rain water

Technical Details

  • Strong and compact construction
  • Available in various versions and models
  • WRAS approval for the standard version (up to +85°C)

Pump Technical Data

Temperature of the liquid:

from -15°C to +85°C (standard)

from -15°C to +110C ( for TE version for high temperature)

  • Maximum working pressure: 10 bar
  • Maximum chlorine content: 500 ppm
  • G1 suction connection for MATRIX 3, G1frac14; for MATRIX 5,

G1½ for MATRIX 10, G2 for MATRIX 18

  • G1 discharge connection for MATRIX 3-5, G1frac14; for MATRIX 10,

G1½ for MATRIX 18

Motor Technical Data

  • High efficiency motors IE2 starting from 0,75kW
  • Self-ventilated 2 poles asynchronous motor
  • Class of insulation F
  • IP55 Protection degree
  • 230V ±10%, 50Hz single phase voltage

230/400V±10%, 50Hz three phase voltage

  • Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
  • Protection under user's responsibility for the three phase version


Materials

  • Pump casing, impellers, intermediate stages, seal housing disc and shaft

(part in contact with the liquid) in EN 1.4301 (AISI 304)

  • Mechanical seal in Carbon/Ceramic/EPDM
  • Bracket in EN AB-AISI11Cu2(Fe) (microcasted aluminium)
  • Pump casing, impellers, intermediate stages, seal housing disc and shaft (part in contact with the liquid) in AISI 304
  • Mechanical sealing in Carbon/Ceramic/EPDM
  • Support and motor casing in aluminium
More Information
Product Type Horizontal Multistage Pump
Custom Shipping 0.000000
Manufacturer EBARA pumps
Warranty 1 Year Warranty
Power Supply 220V-240V Single Phase
Kw Rating 1.5
Product Code 2470390000A
Orientation Horizontal
